Vehicle Exploded View - APRILIA ATLANTIC 500 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

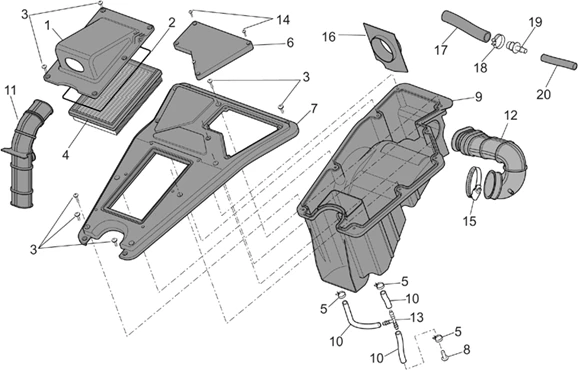

Chassis : 28.24 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/760/Atlantic_500_2001-2004_28.24.PNG)
1 |
AP8149438 - COUVERCLE FILTRE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/8/img/71408.jpg)
2 |
GASKET COVER DE AIR FILTER (D3) OEM PIAGGIO COMMON A LA RANGE-AP8120615 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
3 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 21 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/2/0/img/71220_20260205015820.jpg)
4 |
ELEMENT/MOUSSE DE AIR FILTER MOTO OEM PIAGGIO MOTO-GUZZI 750 V-7 2008 > 2011, BREVA 2003 > 2009, NEVADA 2004 > 2011/APRILIA 500 ATLANTIC 2001 > 2004, 500 SCARABEO 2003 > 2006-AP8104242 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
5 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 3 |
||||||
|
6 |
AP8158192 - COUVERCLE; More informationQuantity required : 1 |
||||||
|
7 |
AP8149437 - COUVERCLE CORPS FILTRE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/9/img/71419.JPG)
8 |
CAP DE VIDANGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8120876 More informationQuantity required : 2 |
||||||
|
9 |
AP8149428 - BASE CORPS FILTRE; More informationQuantity required : 1 |
||||||
|
9 |
Base corps filtre |
||||||
|
10 |
AP8144038-FUEL HOSE 6X10 More informationQuantity required : 2 |
||||||
|
11 |
AP8144442-HOSE D'ADMISSION More informationQuantity required : 1 |
||||||
|
12 |
Manchon |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/6/img/71756.jpg)
13 |
FITTING EN T OEM PIAGGIO COMMON A LA RANGE-AP8144303 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
14 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/8/img/71178.jpg)
15 |
CLAMP (70-50X8) ORRIGINE PIAGGIO COMMON A LA RANGE-AP8102401 More informationQuantity required : 1 |
||||||
|
16 |
AP8158320 - PROTECTION; More informationQuantity required : 1 |
||||||
|
17 |
TUYAU |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/2/8/img/72128.jpg)
18 |
AP8201169-CLAMP CLIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/8/img/71188.jpg)
19 |
FITTING A DEUX VOIES OEM APRILIA COMMON A LA RANGE-AP8102576 More informationQuantity required : 1 |
||||||
|
20 |
890499-FUEL HOSE D. 8X13 More informationQuantity required : 1 |
