Vehicle Exploded View - APRILIA ATLANTIC 500 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

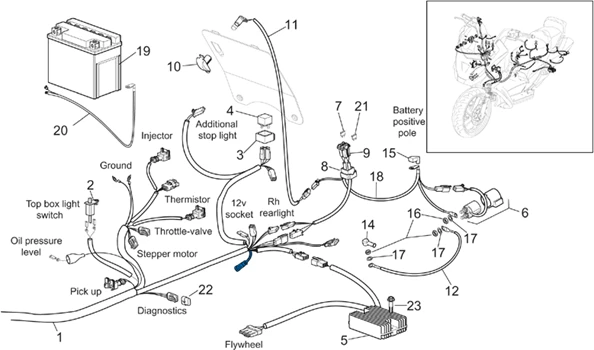

Chassis : 28.34 CIRCUIT ELECTRIQUE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/760/Atlantic_500_2001-2004_28.34.PNG)
1 |
AP8127027 - CABLAGE PRINCIPAL; More informationQuantity required : 1 |
||||||
|
1 |
AP8127530 - CABLAGGIO PRINCIPALE More informationQuantity required : 1 |
||||||
|
2 |
AP8212696 - INTERR. ECLAIR.COFFRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/9/img/72289.jpg)
3 |
RUBBER BRACKET RELAIS OEM PIAGGIO COMMON A LA RANGE-AP8220546 More informationQuantity required : 1 |
||||||
|
4 |
AP8224057-RELAIS DEMARRAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/2/3/img/67823.jpg)
5 |
REGULATEUR DE TENSION MAXISCCOTER OEM PIAGGIO 250-300-400-500 MP3, BEVERLY, 250-300 VESPA GTS, 250-400 X-EVO, X8/GILERA 125-250-300-500 NEXUS/APRILIA 250-300-400-500 ATLANTIC, SCARABEO-639110 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/0/img/71280.jpg)
6 |
RELAIS DE STARTER MOTOR OEM PIAGGIO APRILIA 750 SHIVER, DORSODURO, 1000 RSV-2, TUONO V2, CAPONORD, 650 PEGASSO, 125-250-500 ATLANTIC, SCARABEO, 125 LEONADO, 850 MANA-AP81129276 More informationQuantity required : 1 |
||||||
|
7 |
Fusible |
||||||
|
8 |
AP8120754-RUBBER P-FUSIBLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/7/img/71277.jpg)
9 |
RUBBER DOOR FUSIBLES OEM PIAGGIO COMMON A LA RANGE-AP8112811 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/0/5/img/56305.jpg)
10 |
CAPOT DE LAMPE DE UNDERSEAT COMPARTMENT OEM ATLANTIC 125-200-250-300-400-500-AP8212733 More informationQuantity required : 1 |
||||||
|
11 |
AP8124976-WIRING LUMIERE PLATE More informationQuantity required : 1 |
||||||
|
12 |
AP8127028 - CABLAGE RELAIS-DEMARR.; More informationQuantity required : 1 |
||||||
|
13 |
B063212-PRISE More informationQuantity required : 1 |
||||||
|
14 |
AP8120218-CAPUCHON BORNE More informationQuantity required : 1 |
||||||
|
15 |
CAPUCHON POLE POSITIF BATTERY OEM PIAGGIO COMMON A LA RANGE-AP8112940 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
16 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
17 |
WASHER ELASTIC COURBE (6X12) OEM PIAGGIO COMMON A LA RANGE-658830 More informationQuantity required : 3 |
||||||
|
18 |
AP8127268 - CABLAGE FUSIBLE; More informationQuantity required : 1 |
||||||
|
19 |
584033-BATTERY 12V/14AH T YUASA YB14L-A2 More informationQuantity required : 1 |
||||||
|
20 |
AP8127267 - CABLAGE MASSE-BATTERIE; More informationQuantity required : 1 |
||||||
|
20 |
Câblage masse-batterie |
||||||
|
21 |
495357 - FUSIBLE More informationQuantity required : 1 |
||||||
|
22 |
AP8104807 - TAPPO CONNETTORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
23 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8152282 More informationQuantity required : 2 |
