Vehicle Exploded View - APRILIA ATLANTIC 500 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

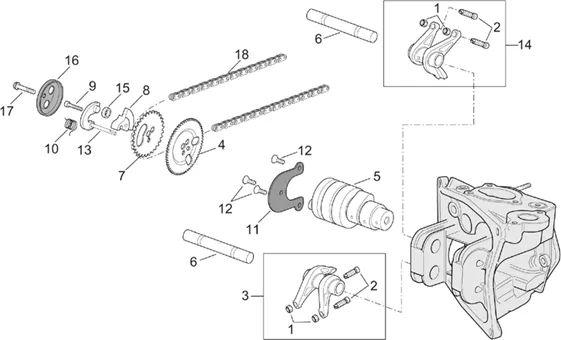

Moteur : 29.43 COMMANDE SOUPAPES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/760/Atlantic_500_2001-2004_29.43.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/7/img/66667.jpg)
1 |
NUT DE CULBUTEUR (M6X0. 75) OEM PIAGGIO COMMON A LA RANGE-484819 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/3/1/img/68731.jpg)
2 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/7/6/img/68576.jpg)
3 |
CULBUTEUR/BASCULEUR EXHAUST OEM PIAGGIO 400-500 BEVERLY, MP3, 400 X8, X-EVO, 500 X9/GILERA 500 NEXUS, FUOCO, 800 GP, MANA/APRILIA 400-500 ATLANTIC, SCARABEO, 850 MANA, SRV-8260285 More informationQuantity required : 1 |
||||||
4 |
829211-CABLE INSTRUMENT CLUSTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/4/8/img/69348.jpg)
5 |
CAMSHAFT "PIAGGIO GENUINE PART" 400-500 BEVERLY, MP3, X8, X9, X-EVO/GILERA NEXUS, FUOCO, GP 800/APRILIA 500 ATLANTIC -8454115 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/2/2/img/68722.jpg)
6 |
SHAFT OF CULBUTEUR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-827991 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/0/9/img/70709.jpg)
7 |
COURONNE DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 500 2013 <-879185 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/1/3/img/68813.jpg)
8 |
CONTREPOIDS GROUP BALANCIER OEM PIAGGIO 500 BEVERLY, MP3, X9, X10 2013 <-829071 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/6/img/127166.jpg)
9 |
SCREW BTR (5X30) OEM PIAGGIO COMMON A LA RANGE-1A003053 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/3/1/img/68831.jpg)
10 |
SPRING GROUP BALANCIER OEM PIAGGIO 500 BEVERLY, MP3, X9, X10 2013 <-829252 More informationQuantity required : 1 |
||||||
|
11 |
831167-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/4/8/img/68948.jpg)
12 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-831153 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/4/9/img/68949.jpg)
13 |
DECOMPRESSOR GROUND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 500 -8311615- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/7/5/img/68575.jpg)
14 |
CULBUTEUR/BASCULEUR INTAKE OEM PIAGGIO 400-500 BEVERLY, MP3, 400 X8, X-EVO/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV, MANA-8260275 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/1/5/img/68815.jpg)
15 |
BUSH GROUP BALANCIER OEM PIAGGIO COMMON A LA RANGE-829097 More informationQuantity required : 1 |
||||||
|
16 |
829247-COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/4/img/72724.jpg)
17 |
B016778 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/1/3/img/68713.jpg)
18 |
CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-827889 More informationQuantity required : 1 |
