Vehicle Exploded View - APRILIA ATLANTIC 500 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

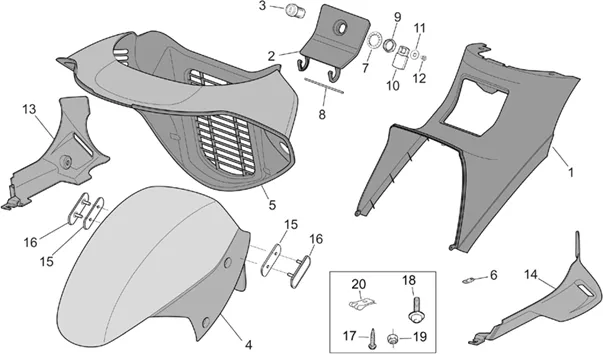

Chassis : 28.10 CARROSSERIE AV. III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/760/Atlantic_500_2001-2004_28.10.PNG)
1 |
AP8149481 - TUNNEL NOIR; More informationQuantity required : 1 |
||||||
|
1 |
AP8178615 - TUNNEL CON FORO More informationQuantity required : 1 |
||||||
|
2 |
AP8149477 - ABATTANT ESSENCE; More informationQuantity required : 1 |
||||||
|
3 |
AP8104489 - SERRURE More informationQuantity required : 1 |
||||||
|
4 |
AP8126877 - GARDE-BOUE AVANT PEINT GRIS; More informationQuantity required : 1 |
||||||
|
4 |
AP8126994-GUARD-MUD AV BLUE More informationQuantity required : 1 |
||||||
|
4 |
AP8126995 - GARDE-BOUE AVANT PEINT ROUGE; More informationQuantity required : 1 |
||||||
|
4 |
AP8126996 - GARDE-B AV. BLEU; More informationQuantity required : 1 |
||||||
|
4 |
AP8156004 - GARDE-BOUE AVANT PEINT GRIS; More informationQuantity required : 1 |
||||||
|
4 |
Garde-boue AV bleu; |
||||||
|
4 |
AP8156017 - GARDE-BOUE AVANT PEINT ROUGE; More informationQuantity required : 1 |
||||||
|
4 |
AP8156018 - GARDE-B AV. BLEU; More informationQuantity required : 1 |
||||||
|
4 |
AP8156035 - GARDE-BOUE AVANT PEINT ROUGE; More informationQuantity required : 1 |
||||||
|
4 |
AP8156036 - GARDE-BOUE AVANT PEINT ROUGE; More informationQuantity required : 1 |
||||||
|
4 |
AP8156037 - GARDE-BOUE AVANT PEINT GRIS; More informationQuantity required : 1 |
||||||
|
4 |
AP8156038 - GARDE-BOUE AVANT PEINT GRIS; More informationQuantity required : 1 |
||||||
|
4 |
AP8156156 - PARAFANGO ANT.V.BLU HILTON More informationQuantity required : 1 |
||||||
|
4 |
AP8156157 - PARAFANGO ANT.V.BLU HILTON More informationQuantity required : 1 |
||||||
|
4 |
AP8156159 - PARAFANGO ANT.V.GRIGIO TITANIC More informationQuantity required : 1 |
||||||
|
5 |
AP8149482 - CONVOYEUR, NOIR; More informationQuantity required : 1 |
||||||
|
6 |
AP8134799 - PLAQUETTE; More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/5/4/img/57054.jpg)
7 |
WASHER EVENTAIL (D 19) DE LOCK OEM PIAGGIO COMMON A LA RANGE-AP8221312 More informationQuantity required : 1 |
||||||
|
8 |
AP8121568 - PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/8/img/50968.jpg)
9 |
NUT BAS (M19X1) OEM PIAGGIO COMMON A LA RANGE-AP8152194 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/7/5/img/55375.jpg)
10 |
LEVER OUVERTURE HATCH FUEL OEM PIAGGIO APRILIA ATLANTIC, CAPONORD, 50 RALLY, 50-125 RS, RX, SX-AP8201620 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/8/5/img/55385.jpg)
11 |
WASHER EVENTAIL MOUNTING CROCHET DE LOCK OEM PIAGGIO APRILIA ATLANTIC 125-250-500 2003 > 2012, RS 125 2011 > 2017, RS 50 2006 > 2016, SR 50 1993 > 2014-AP8201748 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/1/img/72141.jpg)
12 |
SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-AP8201749 More informationQuantity required : 1 |
||||||
|
13 |
AP8158466 - COUVERCLE BEQUILLE DROITE; More informationQuantity required : 1 |
||||||
|
14 |
AP8158465 - COUVERCLE BEQUILLE GAUCHE; More informationQuantity required : 1 |
||||||
|
15 |
AP8144556 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/9/img/71569.jpg)
16 |
CATADIOPTRE AMBRE OEM PIAGGIO COMMON A LA RANGE-AP8124719 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
17 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
18 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
19 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
20 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
