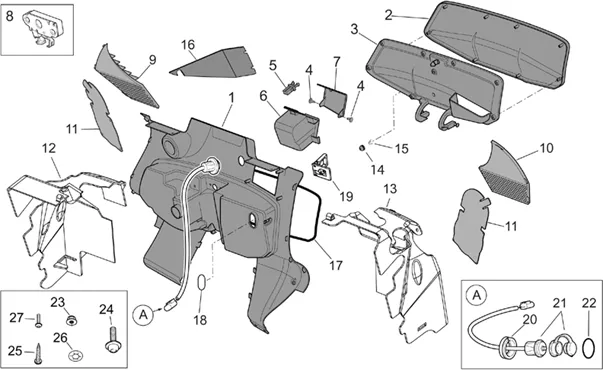

Chassis : 28.09 CARROSSERIE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/760/Atlantic_500_2001-2004_28.09.PNG)
1 |
AP8149470-LEG SHIELD INT. BLACK More informationQuantity required : 1 |
||||||
|
1 |
AP8168489 - TABLIER INT. NOIR; More informationQuantity required : 1 |
||||||
|
2 |
AP8149474 - ABATT. PORTE-OBJETS NOIR; More informationQuantity required : 1 |
||||||
|
3 |
AP8149466 - SUPPORT ABATT.PORTE-OBJETS; More informationQuantity required : 1 |
||||||
|
4 |
AP8102600-CAP More informationQuantity required : 2 |
||||||
|
5 |
AP8104429 - BOUCHON DE FERMETURE More informationQuantity required : 1 |
||||||
|
6 |
AP8158441-VIDE-POCHES More informationQuantity required : 1 |
||||||
|
7 |
AP8149475-PETIT COVER More informationQuantity required : 1 |
||||||
|
8 |
AP8102913-PL. FIX. SEAT PASS. More informationQuantity required : 1 |
||||||
|
9 |
AP8149435-COVER BODY FILTER RIGHT More informationQuantity required : 1 |
||||||
|
10 |
AP8149436-COVER BODY FILTER LEFT More informationQuantity required : 1 |
||||||
|
11 |
AP8158793-PROTECTOR More informationQuantity required : 2 |
||||||
|
12 |
AP8158760 - CONVOYEUR D; More informationQuantity required : 1 |
||||||
|
13 |
AP8158761 - CONVOYEUR G; More informationQuantity required : 1 |
||||||
|
14 |
Caoutchouc |
||||||
|
15 |
Ressort |
||||||
|
16 |
AP8158549 - GRILLE VIDE-POCHES; More informationQuantity required : 1 |
||||||
|
17 |
890518-GASKET More informationQuantity required : 1 |
||||||
|
18 |
AP8144537 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/5/img/72135.jpg)
19 |
ACROCHE CASQUE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA-AP8201534 More informationQuantity required : 1 |
||||||
|
20 |
AP8163327-BUSSOLA CABLE INTERFONO More informationQuantity required : 1 |
||||||
|
21 |
AP8127390 - CAVO PROLUNGA INTERFONO PILOTA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/8/9/img/49589.jpg)
22 |
O-RING 134 OEM MOPED SWINGARM OEM APRILIA CAPONORD, DORSODURO, RSV, SHIVER-AP8144048 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
23 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/2/img/71972.jpg)
24 |
SCREW FLANGE BTR (5X20) OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8152338 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
25 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
26 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/1/img/71971.jpg)
27 |
SCREW BTR CARROSSERIE (3X12) OEM PIAGGIO COMMON A LA RANGE-AP8152334 More informationQuantity required : 4 |
