Vehicle Exploded View - APRILIA ATLANTIC 500 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

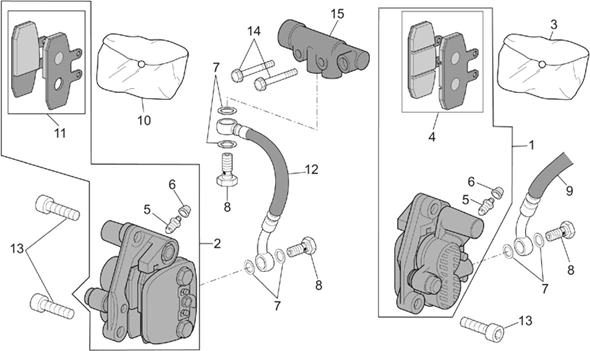

Chassis : 28.28 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/760/Atlantic_500_2001-2004_28.28.PNG)
1 |
AP8113916 - PINCE FREIN AV G; More informationQuantity required : 1 |
||||||
|
2 |
PINZA FRENO DX 1x25 |
||||||
|
3 |
AP8133538 - KIT REVISION PINCE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/6/6/img/71666.jpg)
4 |
BRAKE PAD OEM PIAGGIO APRILIA 500 SCARABEO, ATLANTIC 2001 > 2006 FRONT LEFT, 125 SPORTCITY 2006 > AV, 125 SCARABEO 1999 > 2004 (GRIMECA)-AP8133725 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/9/img/72199.jpg)
5 |
SCREW OF BLEEDING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA-AP8213108 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/4/img/71284.jpg)
6 |
CAPUCHON RENIFLARD BRAKE CALIPER OROGINE PIAGGIO COMMON A LA RANGE 2008 <-AP8113005 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
7 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
8 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 3 |
||||||
|
9 |
AP8113944-TUBE BRAKE FRONT More informationQuantity required : 1 |
||||||
|
10 |
AP8133538 - KIT REVISION PINCE; More informationQuantity required : 1 |
||||||
|
11 |
AP8133723 - PASTIGLIE-COPPIA More informationQuantity required : 1 |
||||||
|
12 |
AP8113946 - TUBE FREIN; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/3/img/71823.jpg)
13 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8150107 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
14 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8152282 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/7/8/7/img/48787.jpg)
15 |
BRAKE VALVE "PIAGGIO GENUINE PART" APRILIA 125-250-400-500 ATLANTIC, SCARABEO (GRIMECA) -AP8133738 More informationQuantity required : 1 |
