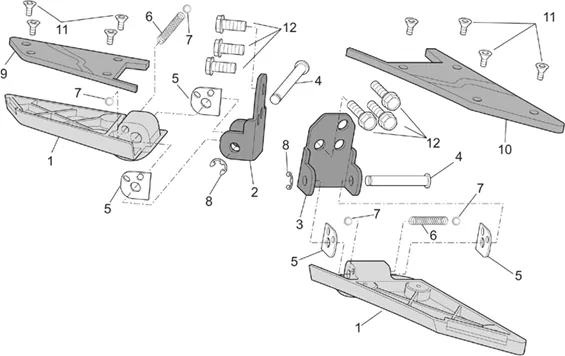

Chassis : 28.02 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/760/Atlantic_500_2001-2004_28.02.PNG)
1 |
AP8146593 - R-PIED PASS.-PAIRE; More informationQuantity required : 1 |
||||||
|
2 |
AP8134816 - SUPPORT R-P. PASS.DR.; More informationQuantity required : 1 |
||||||
|
3 |
AP8134817 - SUPPORT R-P. G PASS.; More informationQuantity required : 1 |
||||||
|
4 |
AP8121480 - PIVOT REPOSE-PIEDS More informationQuantity required : 2 |
||||||
|
5 |
AP8134818 - PLAQUE FDC R-PIED; More informationQuantity required : 4 |
||||||
|
6 |
Ressort |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/3/img/71163.jpg)
7 |
BILLE BLOCAGE FOOTREST OEM PIAGGIO APRILIA DORSODURO 750-900-1200, RS 50-125, RSV-4 1000, TUONO 1000/MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE-AP8101861 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/1/img/71981.jpg)
8 |
CLIPS/CIRCLIPS (D-8) OEM PIAGGIO COMMON A LA RANGE-AP8152409 More informationQuantity required : 2 |
||||||
|
9 |
AP8158360 - COUVRE-PLANCHER PAS.D; More informationQuantity required : 1 |
||||||
|
10 |
AP8158361 - COUVRE-PLANCHER PAS.G; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
11 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 8 |
||||||
|
12 |
AP8150499-SCREW More informationQuantity required : 6 |
