Vehicle Exploded View - APRILIA ATLANTIC 500 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

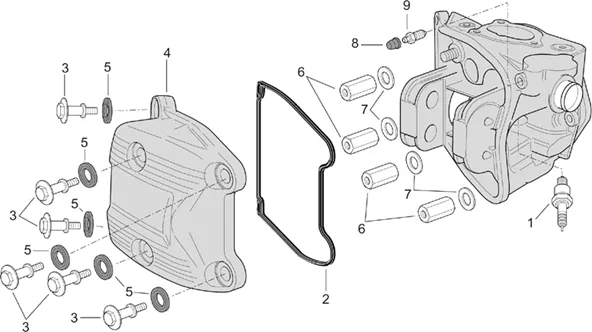

Moteur : 29.45 COUVRE-CULASSE (EXTERNAL THERMOSTAT)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/760/Atlantic_500_2001-2004_29.45.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/2/9/img/66529.jpg)
1 |
SPARK PLUG CHAMPION RG6YC OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-438073 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/9/img/68879.jpg)
1 |
SPARK PLUG CR7EKB OEM PIAGGIO 500 MP3 GILERA NEXUS 2006 >-829981 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/3/7/img/68937.jpg)
2 |
GASKET COVER DE CYLINDER HEAD OEM PIAGGIO 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV, MANA-830820 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/3/6/img/70436.jpg)
3 |
SCREW COVER CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE-872635 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/7/img/109027.jpg)
4 |
COVER CYLINDER HEAD OEM PIAGGIO 500 MP3 2011 > 1A003952 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/2/img/68902.jpg)
5 |
GASKET OF SCREW COVER DE CYLINDER HEAD OEM PIAGGIO 125-400-500 MP3, BEVERLY, 125-350 X10/APRILIA 750 DORSODURO, SHIVER, 850 SRV/GILERA 250-300-500 ATLANTIC, NEXUS/MOTO-GUZZI 1200 SPORT, GRISO-830249 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/1/8/img/69018.jpg)
6 |
NUT HEXAGONAL HAUT OEM PIAGGIO COMMON A LA RANGE-832783 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
7 |
WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/7/img/65657.jpg)
8 |
063435-CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/0/img/66370.jpg)
9 |
SCREW OF BLEEDING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE-430045 More informationQuantity required : 1 |
