Vehicle Exploded View - APRILIA ATLANTIC 500 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

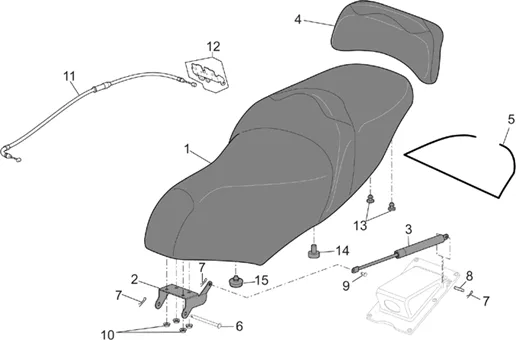

Chassis : 28.14 GROUPE SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/760/Atlantic_500_2001-2004_28.14.PNG)
1 |
AP8129304 - SELLE PILOTE GRIS; More informationQuantity required : 1 |
||||||
|
1 |
AP8129370 - SELLE PILOTE; More informationQuantity required : 1 |
||||||
|
1 |
Selle pilote |
||||||
|
2 |
AP8149430 - CHARNIERE SELLE; More informationQuantity required : 1 |
||||||
|
3 |
AP8163171 - AMORTISSEUR DE SELLE More informationQuantity required : 1 |
||||||
|
4 |
AP8129302 - DOSSIER GRISE; More informationQuantity required : 1 |
||||||
|
4 |
AP8129333 - DOSSIER GRISE; More informationQuantity required : 1 |
||||||
|
4 |
AP8129371 - DOSSIER NOIR; More informationQuantity required : 1 |
||||||
|
4 |
AP8129438 - SCHIENALE PASS.TRI-COL.GRIGIO More informationQuantity required : 1 |
||||||
|
5 |
890503 - JOINT SELLE More informationQuantity required : 1 |
||||||
|
6 |
AP8121479 - PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/8/img/72138.jpg)
7 |
GOUPILLE OEM PIAGGIO COMMON A LA RANGE/SPINDLE HATCH FUEL DERBI 50 SENDA 2018 >-AP8201643 More informationQuantity required : 3 |
||||||
|
8 |
AP8121534-PIVOT More informationQuantity required : 1 |
||||||
|
9 |
AP8121533-PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
10 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 4 |
||||||
|
11 |
AP8104440-CABLE LOCK More informationQuantity required : 1 |
||||||
|
12 |
LOCK DE SEAT OEM PIAGGIO APRILIA ATLANTIC 125-250 2003 > 2012, SR 50 2004 > 2014-AP8102947 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/7/img/71747.jpg)
13 |
BUTEE RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8144087 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/9/img/71749.jpg)
14 |
AP8144089-RUBBER FRONT SEAT * More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/9/0/img/71590.jpg)
15 |
BUTEE RUBBER DE SEAT OEM PIAGGIO COMMON A LA RANGE-AP8126702 More informationQuantity required : 2 |
