Vehicle Exploded View - APRILIA ATLANTIC 500 2001-2004 APRILIA

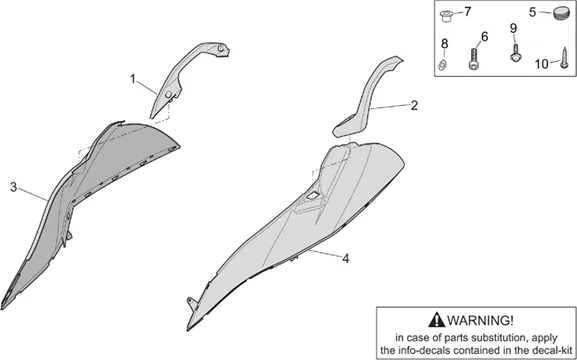

Chassis : 28.15 CARROSSERIE POSTERIEURE I
Carrosserie posterieure I
Search
AP8149456 - POIGNEE PASS.D.GRISE;

1
P2R reference P2R reference 50658
Maker reference Maker reference AP8149456

AP8149456 - POIGNEE PASS.D.GRISE;

More information

Quantity required : 1

AP8158802 - POIGNEE PASS.D., BLEU;

1
P2R reference P2R reference 51844
Maker reference Maker reference AP8158802

AP8158802 - POIGNEE PASS.D., BLEU;

More information

Quantity required : 1

AP8158814 - POIGNEE PASS.D., ROUGE;

1
P2R reference P2R reference 51853
Maker reference Maker reference AP8158814

AP8158814 - POIGNEE PASS.D., ROUGE;

More information

Quantity required : 1

AP8158826 - POIGNEE PASS.D., BLEU;

1
P2R reference P2R reference 51861
Maker reference Maker reference AP8158826

AP8158826 - POIGNEE PASS.D., BLEU;

More information

Quantity required : 1

AP8168357 - POIGNEE PASS.D., ROUGE;

1
P2R reference P2R reference 53130
Maker reference Maker reference AP8168357

AP8168357 - POIGNEE PASS.D., ROUGE;

More information

Quantity required : 1

AP8168374 - POIGNEE PASS.D.GRISE;

1
P2R reference P2R reference 53140
Maker reference Maker reference AP8168374

AP8168374 - POIGNEE PASS.D.GRISE;

More information

Quantity required : 1

AP8178690 - MANIGLIA PASS.DX V.GRI.A.

1
P2R reference P2R reference 54092
Maker reference Maker reference AP8178690

AP8178690 - MANIGLIA PASS.DX V.GRI.A.

More information

Quantity required : 1

AP8149457 - POIGNEE PASS.G.GRISE;

2
P2R reference P2R reference 50659
Maker reference Maker reference AP8149457

AP8149457 - POIGNEE PASS.G.GRISE;

More information

Quantity required : 1

AP8158803 - POIGNEE PASS.G.BLEU;

2
P2R reference P2R reference 51845
Maker reference Maker reference AP8158803

AP8158803 - POIGNEE PASS.G.BLEU;

More information

Quantity required : 1

AP8158815 - POIGNEE PASS.G.ROUGE;

2
P2R reference P2R reference 51854
Maker reference Maker reference AP8158815

AP8158815 - POIGNEE PASS.G.ROUGE;

More information

Quantity required : 1

AP8158827 - POIGNEE PASS.G.BLEU;

2
P2R reference P2R reference 51862
Maker reference Maker reference AP8158827

AP8158827 - POIGNEE PASS.G.BLEU;

More information

Quantity required : 1

AP8168358 - POIGNEE PASS.G.ROUGE;

2
P2R reference P2R reference 53131
Maker reference Maker reference AP8168358

AP8168358 - POIGNEE PASS.G.ROUGE;

More information

Quantity required : 1

AP8168375 - POIGNEE PASS.G.GRISE;

2
P2R reference P2R reference 53141
Maker reference Maker reference AP8168375

AP8168375 - POIGNEE PASS.G.GRISE;

More information

Quantity required : 1

AP8178691 - MANIGLIA PASS.SX V.GRI.A.

2
P2R reference P2R reference 54093
Maker reference Maker reference AP8178691

AP8178691 - MANIGLIA PASS.SX V.GRI.A.

More information

Quantity required : 1

AP8168353 - FLANC AR. D, ROUGE;

3
P2R reference P2R reference 53127
Maker reference Maker reference AP8168353

AP8168353 - FLANC AR. D, ROUGE;

More information

Quantity required : 1

AP8168368 - FLANC AR. D, GRIS;

3
P2R reference P2R reference 53135
Maker reference Maker reference AP8168368

AP8168368 - FLANC AR. D, GRIS;

More information

Quantity required : 1

AP8178686 - FIANCATA POST.DX V.BLU HILTON

3
P2R reference P2R reference 54088
Maker reference Maker reference AP8178686

AP8178686 - FIANCATA POST.DX V.BLU HILTON

More information

Quantity required : 1

AP8178696 - FIANCATA POST.DX.V.GRI.TIT.

3
P2R reference P2R reference 54095
Maker reference Maker reference AP8178696

AP8178696 - FIANCATA POST.DX.V.GRI.TIT.

More information

Quantity required : 1

AP8178698 - FIANCATA POST.DX.V.GRI.TIT.

3
P2R reference P2R reference 54097
Maker reference Maker reference AP8178698

AP8178698 - FIANCATA POST.DX.V.GRI.TIT.

More information

Quantity required : 1

AP8158535 - FLANC AR. D, GRIS;

3
P2R reference P2R reference 51687
Maker reference Maker reference AP8158535

AP8158535 - FLANC AR. D, GRIS;

More information

Quantity required : 1

AP8158804 - FLANC AR. D, BLEU;

3
P2R reference P2R reference 51846
Maker reference Maker reference AP8158804

AP8158804 - FLANC AR. D, BLEU;

More information

Quantity required : 1

AP8158816 - FLANC AR. D, ROUGE;

3
P2R reference P2R reference 51855
Maker reference Maker reference AP8158816

AP8158816 - FLANC AR. D, ROUGE;

More information

Quantity required : 1

AP8158828 - FLANC AR. D., BLEU;

3
P2R reference P2R reference 51863
Maker reference Maker reference AP8158828

AP8158828 - FLANC AR. D., BLEU;

More information

Quantity required : 1

Flanc ar. D, rouge;

3
P2R reference P2R reference
Maker reference Maker reference AP8168351

Flanc ar. D, rouge;

AP8168370 - FLANC AR. D, GRIS;

3
P2R reference P2R reference 53136
Maker reference Maker reference AP8168370

AP8168370 - FLANC AR. D, GRIS;

More information

Quantity required : 1

AP8178684 - FIANCATA POST.DX V.BLU HILTON

3
P2R reference P2R reference 54086
Maker reference Maker reference AP8178684

AP8178684 - FIANCATA POST.DX V.BLU HILTON

More information

Quantity required : 1

AP8168354 - FLANC AR. G, ROUGE;

4
P2R reference P2R reference 53128
Maker reference Maker reference AP8168354

AP8168354 - FLANC AR. G, ROUGE;

More information

Quantity required : 1

Flanc ar. G, gris;

4
P2R reference P2R reference
Maker reference Maker reference AP8168369

Flanc ar. G, gris;

AP8158536 - FLANC AR. G, GRIS;

4
P2R reference P2R reference 51688
Maker reference Maker reference AP8158536

AP8158536 - FLANC AR. G, GRIS;

More information

Quantity required : 1

AP8158805 - FLANC AR. G, BLEU;

4
P2R reference P2R reference 51847
Maker reference Maker reference AP8158805

AP8158805 - FLANC AR. G, BLEU;

More information

Quantity required : 1

AP8158817 - FLANC AR. G, ROUGE;

4
P2R reference P2R reference 51856
Maker reference Maker reference AP8158817

AP8158817 - FLANC AR. G, ROUGE;

More information

Quantity required : 1

Flanc ar. G., bleu;

4
P2R reference P2R reference
Maker reference Maker reference AP8158829

Flanc ar. G., bleu;

AP8168352 - FLANC AR. G, ROUGE;

4
P2R reference P2R reference 53126
Maker reference Maker reference AP8168352

AP8168352 - FLANC AR. G, ROUGE;

More information

Quantity required : 1

AP8168371 - FLANC AR. G, GRIS;

4
P2R reference P2R reference 53137
Maker reference Maker reference AP8168371

AP8168371 - FLANC AR. G, GRIS;

More information

Quantity required : 1

AP8178685 - FIANCATA POST.SX V.BLU HILTON

4
P2R reference P2R reference 54087
Maker reference Maker reference AP8178685

AP8178685 - FIANCATA POST.SX V.BLU HILTON

More information

Quantity required : 1

AP8178687 - FIANCATA POST.SX V.BLU HILTON

4
P2R reference P2R reference 54089
Maker reference Maker reference AP8178687

AP8178687 - FIANCATA POST.SX V.BLU HILTON

More information

Quantity required : 1

AP8178697 - FIANCATA POST.SX.V.GRI.TIT.

4
P2R reference P2R reference 54096
Maker reference Maker reference AP8178697

AP8178697 - FIANCATA POST.SX.V.GRI.TIT.

More information

Quantity required : 1

AP8178699 - FIANCATA POST.SX.V.GRI.TIT.

4
P2R reference P2R reference 54098
Maker reference Maker reference AP8178699

AP8178699 - FIANCATA POST.SX.V.GRI.TIT.

More information

Quantity required : 1

Bouchon poignée;

5
P2R reference P2R reference
Maker reference Maker reference AP8158831

Bouchon poignée;

Bouchon poignée;

5
P2R reference P2R reference
Maker reference Maker reference AP8158906

Bouchon poignée;

Bouchon poignée;

5
P2R reference P2R reference
Maker reference Maker reference AP8158907

Bouchon poignée;

Bouchon poignée;

5
P2R reference P2R reference
Maker reference Maker reference AP8158908

Bouchon poignée;

Bouchon poignée;

5
P2R reference P2R reference
Maker reference Maker reference AP8168359

Bouchon poignée;

AP8168376 - BOUCHON POIGNEE;

5
P2R reference P2R reference 53142
Maker reference Maker reference AP8168376

AP8168376-CAP GRIP

More information

Quantity required : 1

SCREW BTR (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8150170

6
P2R reference P2R reference 71830
Maker reference Maker reference AP8150170

SCREW BTR (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8150170

More information

Quantity required : 4

BUSH EN T (8, 5X10, 7X12) OEM PIAGGIO COMMON A LA RANGE-AP8221128

7
P2R reference P2R reference 72297
Maker reference Maker reference AP8221128

BUSH EN T (8, 5X10, 7X12) OEM PIAGGIO COMMON A LA RANGE-AP8221128

More information

Quantity required : 4

WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376

8
P2R reference P2R reference 71870
Maker reference Maker reference AP8150376

WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376

More information

Quantity required : 4

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

9
P2R reference P2R reference 71933
Maker reference Maker reference AP8152246

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

More information

Quantity required : 4

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

10
P2R reference P2R reference 71876
Maker reference Maker reference AP8150413

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

More information

Quantity required : 4
