Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T E4 2018-2021
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

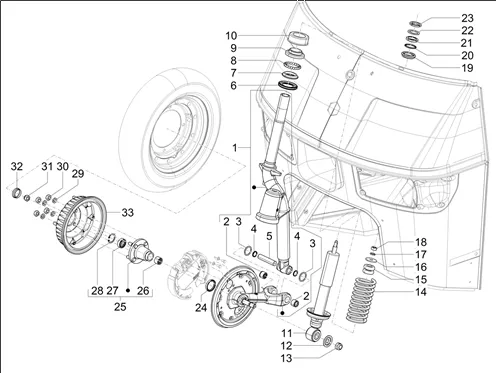

Suspensions - roues : 04.07 SUSPENSION AVANT - AMORTISSEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1011/Ape_50_2T_E4_2018-2021_04.07.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/3/5/img/65735.jpg)
2 |
ROLLER CAGE (16X14. 3) SPINDLE SUSPENSION DE OEM PIAGGIO THREE-WHEELER APE 50 1998 >/PIAGGIO VINTAGE-137146 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/4/img/63834.jpg)
3 |
GASKET ARTICULATION DE BALANCIER DE FORK OEM PIAGGIO COMMON A LA RANGE VESPA ET MP3/GASKET THERMOSTAT PORTER-006731 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/0/7/img/65707.jpg)
4 |
GASKET OF ARM ARTICULATION DE FORK FRONT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-119219 More informationQuantity required : 2 |
||||||
5 |
137144 SHAFT OF STEERING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/7/8/6/img/116786.jpg)
6 |
WASHER INFERIEURE SET OF STEERING OEM PIAGGIO 50 THREE-WHEELER APE 2T 1980 >-119216 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/8/0/4/img/142804.jpg)
7 |
SIEGE BEARING DE STEERING OEM PIAGGIO THREE-WHEELER APE 50 > 1998-5689335 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/2/6/img/110226.jpg)
8 |
BILLE D = 7. 9 OEM PIAGGIO COMMON A LA RANGE-006380 More informationQuantity required : 20 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/8/1/4/img/142814.jpg)
9 |
CUVETTE DE STEERING INFERIEURE OEM PIAGGIO THREE-WHEELER 50 APE 2T 1998 > 2018-5689345 More informationQuantity required : 1 |
||||||
|
10 |
119215 COIFFE * More informationQuantity required : 1 |
||||||
|
11 |
646463 SHOCK ABSORBER AV. More informationQuantity required : 1 |
||||||
|
12 |
177468 WASHER More informationQuantity required : 1 |
||||||
|
13 |
006844 NUT S00684400 More informationQuantity required : 1 |
||||||
|
14 |
119878 SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/0/img/65770.jpg)
15 |
BUFFER/RUBBER SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-174874 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/3/2/img/111132.jpg)
16 |
WASHER PLATE (10. 5X38X3) OEM PIAGGIO COMMON A LA RANGE-567427 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
17 |
WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/5/9/9/img/65599.jpg)
18 |
NUT (10X1. 25) OEM PIAGGIO COMMON A LA RANGE-021110 More informationQuantity required : 1 |
||||||
|
18 |
0211102 - COMMUTATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/8/0/5/img/142805.jpg)
19 |
CUVETTE DE STEERING SUPERIEURE OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 >-5689315 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/2/img/65372.jpg)
20 |
BILLE STEERING 4 MM OEM PIAGGIO THREE-WHEELER APE/AIR FILTER PX125-014246 More informationQuantity required : 28 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/8/1/1/img/142811.jpg)
21 |
CUVETTE SUPERIEURE DE STEERING OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 >-5689325 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/3/img/63783.jpg)
22 |
WASHER DE TIGHTENING OF FORK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC ET MAXI SCOOTER 125 CC-0037514 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/3/9/img/65339.jpg)
23 |
NUT SERRAGE STEERING OEM PIAGGIO ON L'ENSEMBLE DE LA RANGE MAXI SCOOTER-0111094 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/4/5/4/img/114454.jpg)
24 |
BUSH OF FORK OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 >-021460 More informationQuantity required : 1 |
||||||
|
26 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/7/3/img/139373.jpg)
27 |
BEARING (12X32X10) OEM PIAGGIO COMMON A LA RANGE-0028005 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/2/img/63822.jpg)
28 |
CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE-006632 More informationQuantity required : 1 |
||||||
|
29 |
WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/5/img/65465.jpg)
30 |
NUT (M10) OEM PIAGGIO COMMON A LA RANGE-020110 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/1/img/65721.jpg)
31 |
NUT TAMBOUR OF BRAKE OEM VESPA THREE-WHEELER APE 50-126409 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/2/img/65722.jpg)
32 |
CAPUCHON DE WHEEL OEM PIAGGIO THREE-WHEELER 50 APE 2009-2018-126410 More informationQuantity required : 1 |
||||||
|
33 |
B042438 TAMBOUR BRAKE More informationQuantity required : 1 |
