Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T E4 2018-2021
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

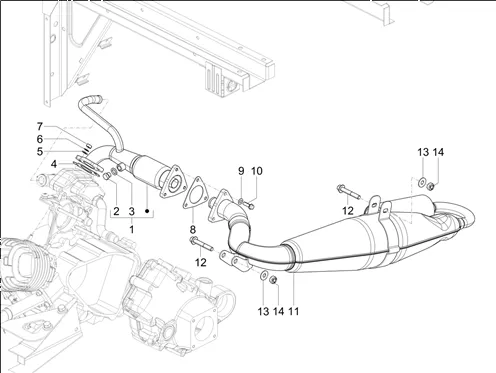

Moteur : 01.42 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1011/Ape_50_2T_E4_2018-2021_01.42.png)
1 |
Tuyau echapp. |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/3/img/66433.jpg)
2 |
SCREW/CAP EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-433122 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/2/img/65412.jpg)
3 |
GASKET OBTURATEUR EXHAUST COMMON A L ENSEMBLE DE LA RANGE-016195 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/9/img/66199.jpg)
4 |
GASKET SILENCER EXHAUST OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 >-288837 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
5 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
6 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
7 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 2 |
|||||||||
|
8 |
GASKET ENTRE MANIFOLD ET BODY EXHAUST OEM PIAGGIO THREE-WHEELER APE 50 2T 2018 >-1A010762 More informationQuantity required : 1 |
|||||||||
|
9 |
840782-SPRING More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
10 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 3 |
|||||||||
|
11 |
1A011929 SILENCER COMPLETE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/7/2/img/109872.jpg)
12 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1A001623 More informationQuantity required : 2 |
|||||||||
|
12 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1A001623 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/6/7/0/img/73670.jpg)
13 |
WASHER PLATE (8. 4X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-006032 More informationQuantity required : 2 |
|||||||||
|
14 |
NUT M8 OEM PIAGGIO COMMON A LA RANGE-272176 More informationQuantity required : 2 |
|||||||||
