Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T E4 2018-2021 PIAGGIO VU

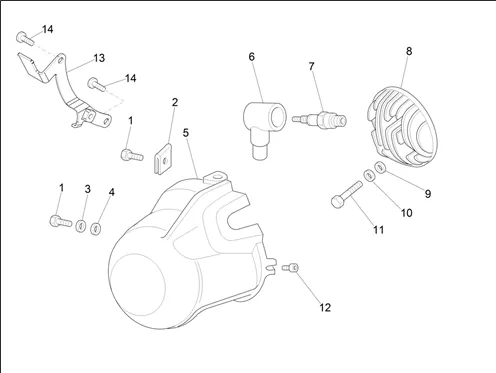

Moteur : 01.12 COUVERCLE CULASSE
Couvercle culasse
Search
SCREW TH (6X12) OEM PIAGGIO COMMON A LA RANGE-031086

1
P2R reference P2R reference 65637
Maker reference Maker reference 0310865

SCREW TH (6X12) OEM PIAGGIO COMMON A LA RANGE-031086

More information

Quantity required : 2

008112 - CLIPS S00811200

2
P2R reference P2R reference 63847
Maker reference Maker reference 0081125

008112-CLIPS S00811200

More information

Quantity required : 1

WASHER SPRING (6, 4X16X1) OEM PIAGGIO COMMON A LA RANGE-078307

3
P2R reference P2R reference 65664
Maker reference Maker reference 0783075

WASHER SPRING (6, 4X16X1) OEM PIAGGIO COMMON A LA RANGE-078307

More information

Quantity required : 2

007631 - RONDELLE S00763100

4
P2R reference P2R reference 63845
Maker reference Maker reference 0076315

007631 - RONDELLE S00763100

More information

Quantity required : 4

834295 - CUFFIA DI RAFF

5
P2R reference P2R reference 116634
Maker reference Maker reference 834295

834295 CUFFIA DI RAFF *

More information

Quantity required : 1

COVER/CAPUCHON EMBOUT ANTIPARASITE OEM PIAGGIO THREE-WHEELER APE50-VESPA FL2/PX-244395

6
P2R reference P2R reference 65991
Maker reference Maker reference 244395

COVER/CAPUCHON EMBOUT ANTIPARASITE OEM PIAGGIO THREE-WHEELER APE50-VESPA FL2/PX-244395

More information

Quantity required : 1

SPARK PLUG OEM PIAGGIO THREE-WHEELER APE 50 2T 2018 >-1A010674

7
P2R reference P2R reference 169793
Maker reference Maker reference 1A010674

SPARK PLUG OEM PIAGGIO THREE-WHEELER APE 50 2T 2018 >-1A010674

More information

Quantity required : 1

CYLINDER HEAD OEM PIAGGIO THREE-WHEELER APE 50 2T 2018 >-1A0106715

8
P2R reference P2R reference 179519
Maker reference Maker reference 1A0106715

CYLINDER HEAD OEM PIAGGIO THREE-WHEELER APE 50 2T 2018 >-1A0106715

More information

Quantity required : 1

WASHER PLATE (7X12. 7. 1) OEM PIAGGIO COMMON A LA RANGE-003057

9
P2R reference P2R reference 63778
Maker reference Maker reference 0030575

WASHER PLATE (7X12. 7. 1) OEM PIAGGIO COMMON A LA RANGE-003057

More information

Quantity required : 4

WASHER GROWER (6, 7X12X1. 9) OEM PIAGGIO COMMON A LA RANGE-016407

10
P2R reference P2R reference 65417
Maker reference Maker reference 0164075

WASHER GROWER (6, 7X12X1. 9) OEM PIAGGIO COMMON A LA RANGE-016407

More information

Quantity required : 8

015559 - BOULON S01555900

11
P2R reference P2R reference 65381
Maker reference Maker reference 0155595

015559-BOLT S01555900

More information

Quantity required : 4

018509 - VIS

12
P2R reference P2R reference 65434
Maker reference Maker reference 0185095

018509-SCREW

More information

Quantity required : 5

1A011811 - PATTE

13
P2R reference P2R reference 179520
Maker reference Maker reference 1A011811

1A011811 BRACKET

More information

Quantity required : 1

CM288712 - VIS TC

14
P2R reference P2R reference 167521
Maker reference Maker reference CM288712

CM288712 SCREW TC

More information

Quantity required : 2
