Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T E4 2018-2021
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

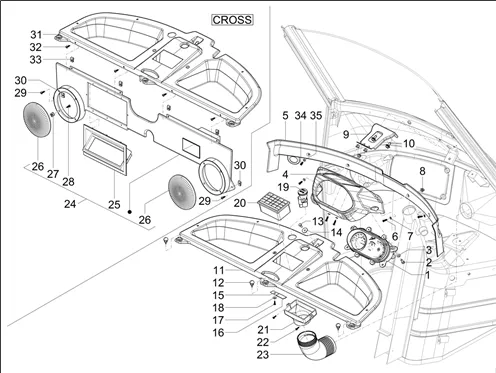

Guidon/direction : 03.02 GROUPE INSTRUMENTS - CRUSCOTTO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1011/Ape_50_2T_E4_2018-2021_03.02.png)
1 |
1D002521 GROUP INSTRUMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
2 |
SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/2/img/63802.jpg)
3 |
WASHER PLATE (5. 2X15X1) OEM PIAGGIO COMMON A LA RANGE-006078 More informationQuantity required : 4 |
||||||
|
5 |
567195 BORDURE More informationQuantity required : 1 |
||||||
|
6 |
|
||||||
|
7 |
WASHER OEM PIAGGIO COMMON A LA RANGE-256382 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
8 |
AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/4/7/img/151147.JPG)
10 |
SCREW A SIX PANS WITH DOUBLE WASHER M6X16-CM288916 More informationQuantity required : 2 |
||||||
|
11 |
Planche |
||||||
|
12 |
118259 RIVET CAOUTCH More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/2/img/65632.jpg)
13 |
SCREW TH (5X12) OEM PIAGGIO COMMON A LA RANGE-031056 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/0/img/63800.jpg)
14 |
WASHER PLATE (5X19X1. 5) OEM PIAGGIO COMMON A LA RANGE-006018 More informationQuantity required : 1 |
||||||
|
15 |
|
||||||
|
16 |
CM007428 GAINE More informationQuantity required : 1 |
||||||
|
17 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
18 |
WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763 More informationQuantity required : 1 |
||||||
|
19 |
B007157 PRISE ELECTRIC More informationQuantity required : 1 |
||||||
|
20 |
264151 - ENTREE D AIR More informationQuantity required : 1 |
||||||
|
21 |
264082 - RACCORD More informationQuantity required : 1 |
||||||
|
22 |
|
||||||
|
23 |
264081 - TUYAU More informationQuantity required : 1 |
||||||
|
24 |
568939 PLANCIA PORTAR More informationQuantity required : 1 |
||||||
|
26 |
263372 - COUVERCLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
27 |
NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/3/img/65403.jpg)
28 |
SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911 More informationQuantity required : 8 |
||||||
|
29 |
SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911 More informationQuantity required : 2 |
||||||
|
30 |
NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408 More informationQuantity required : 2 |
||||||
|
31 |
CM2996025 - PLANCH More informationQuantity required : 1 |
||||||
|
32 |
SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/5/0/img/111350.jpg)
33 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017401 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/7/img/65437.jpg)
34 |
SCREW AUTOTARAUDEUSE (3, 5X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-018536 More informationQuantity required : 2 |
||||||
|
35 |
WASHER OEM PIAGGIO COMMON A LA RANGE-256382 More informationQuantity required : 2 |
