Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T E4 2018-2021
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

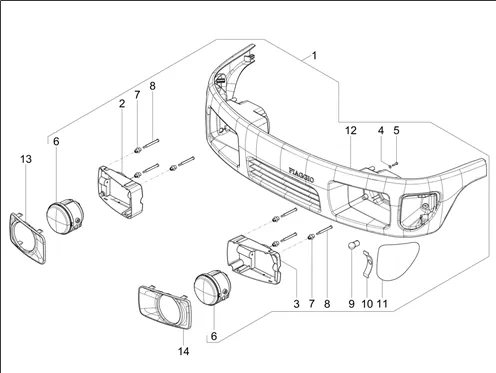

Circuit électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1011/Ape_50_2T_E4_2018-2021_06.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/3/img/65363.jpg)
4 |
WASHER PLATE (3. 8X9X0. 5) OEM PIAGGIO COMMON A LA RANGE-013836 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/8/img/65388.jpg)
5 |
SCREW PARKER (3, 5X19, 5) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015728 More informationQuantity required : 8 |
||||||
6 |
1D002696 LAMP UNIT More informationQuantity required : 2 |
||||||
|
7 |
640800-PIVOT More informationQuantity required : 6 |
||||||
|
7 |
640800-PIVOT More informationQuantity required : 6 |
||||||
|
8 |
1R000469 PIVOT DE REGLAGE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
9 |
AMPOULE/LAMPE 12V 10W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-181746 More informationQuantity required : 2 |
||||||
|
10 |
264087 - PORTE LAMPE GAUCHE More informationQuantity required : 1 |
||||||
|
10 |
264088 - PORTE LAMPE DROIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/7/6/2/img/114762.jpg)
11 |
CABOCHON FRONT LEFT INDICATOR OEM PIAGGIO THREE-WHEELER APE 50 1998 > 2022-294145 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/7/6/3/img/114763.jpg)
11 |
CABOCHON FRONT RIGHT INDICATOR OEM PIAGGIO THREE-WHEELER APE 50 1998 > 2022-294146 More informationQuantity required : 1 |
||||||
|
12 |
567066 PROTECTOR CHOC AV More informationQuantity required : 1 |
