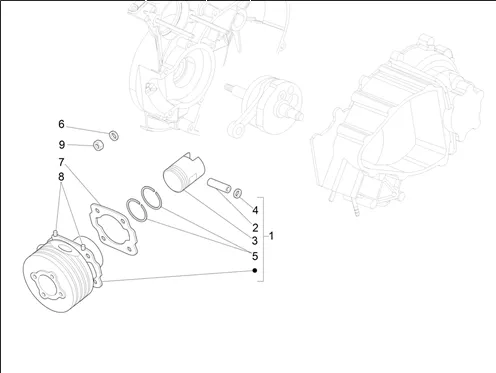

Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1011/Ape_50_2T_E4_2018-2021_01.07.png)
1 |
1A0115865 GROUP CYLINDER-PISTON-SPINDLE More informationQuantity required : 1 |
||||||
|
2 |
879434 SPINDLE PISTON More informationQuantity required : 1 |
||||||
|
3 |
1A011363 PISTON More informationQuantity required : 1 |
||||||
|
4 |
1A011391 CIRCLIPS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/9/5/1/8/img/179518.JPG)
5 |
PISTON RING PISTON D37X1. 5 OEM PIAGGIO APE 50 2T E4 2018-2023-1A011388 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/7/img/65417.jpg)
6 |
WASHER GROWER (6, 7X12X1. 9) OEM PIAGGIO COMMON A LA RANGE-016407 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/2/9/img/68629.jpg)
7 |
CYLINDER BASE GASKET DE CYLINDER OEM PIAGGIO 50 THREE-WHEELER APE 2T 1980 >-826911 More informationQuantity required : 1 |
||||||
|
8 |
1B000428-STUD More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/2/img/65462.jpg)
9 |
NUT (M7X5. 5) DE CYLINDER HEAD OEM PIAGGIO THREE-WHEELER APE 50/VESPA PX 125-020107 More informationQuantity required : 4 |
