Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T E4 2018-2021 PIAGGIO VU

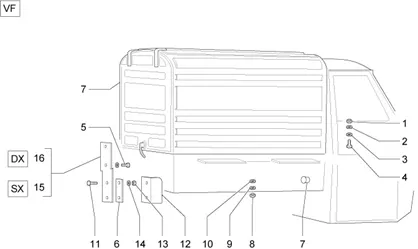

Châssis - parties plastiques - carrosseries : 02.04 CHÂSSIS/CAISSE ARRIÈRE
Châssis/caisse arrière
Search
NUT (M12X1. 25) OEM PIAGGIO COMMON A LA RANGE-191962

1
P2R reference P2R reference 65813
Maker reference Maker reference 191962

NUT (M12X1. 25) OEM PIAGGIO COMMON A LA RANGE-191962

More information

Quantity required : 1

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

2
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 11

WASHER PLATE (6, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-013950

3
P2R reference P2R reference 65368
Maker reference Maker reference 0139505

WASHER PLATE (6, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-013950

More information

Quantity required : 3

SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091

4
P2R reference P2R reference 65642
Maker reference Maker reference 0310915

SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091

More information

Quantity required : 1

SCREW TH (6X25) OEM PIAGGIO COMMON A LA RANGE-031092

5
P2R reference P2R reference 65643
Maker reference Maker reference 0310925

SCREW TH (6X25) OEM PIAGGIO COMMON A LA RANGE-031092

More information

Quantity required : 6

118578 - PLAQUETTE

6
P2R reference P2R reference 113313
Maker reference Maker reference 118578

118578 PLATE

More information

Quantity required : 2

2469845 - FOURGON TRI 50

7
P2R reference P2R reference 124244
Maker reference Maker reference 2469845

2469845 FOURGON TRI 50

More information

Quantity required : 1

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

8
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

More information

Quantity required : 2

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

9
P2R reference P2R reference 65366
Maker reference Maker reference 0138805

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

More information

Quantity required : 2

WASHER PLATE (6, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-013950

10
P2R reference P2R reference 65368
Maker reference Maker reference 0139505

WASHER PLATE (6, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-013950

More information

Quantity required : 3

014417 - VIS S01441700

11
P2R reference P2R reference 109919
Maker reference Maker reference 0144175

014417 SCREW S01441700

More information

Quantity required : 4

BRACKET DE FRAME OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 >-B025098

12
P2R reference P2R reference 111437
Maker reference Maker reference B025098

BRACKET DE FRAME OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 >-B025098

More information

Quantity required : 2

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

13
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

More information

Quantity required : 6

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

14
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 11

118872 - SUPPORT

15
P2R reference P2R reference 117047
Maker reference Maker reference 118872

118872 BRACKET

More information

Quantity required : 1

118873 - SUPPORT

16
P2R reference P2R reference 116131
Maker reference Maker reference 118873

118873 BRACKET

More information

Quantity required : 1
