Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T E4 2018-2021 PIAGGIO VU

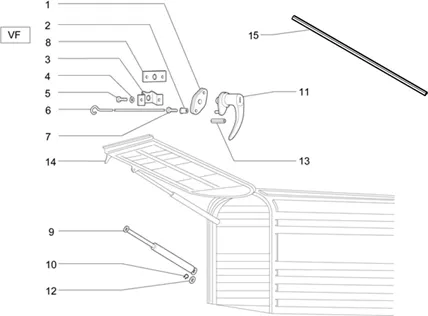

Châssis - parties plastiques - carrosseries : 02.10 HAYON - VITRE
Hayon - Vitre
Search
141833 - PLAQUETTE

1
P2R reference P2R reference 114765
Maker reference Maker reference 141833

141833 PLATE

More information

Quantity required : 1

115817 - EMBOUT

2
P2R reference P2R reference 113320
Maker reference Maker reference 115817

115817 EMBOUT

More information

Quantity required : 2

246616 - BARETTE

3
P2R reference P2R reference 113309
Maker reference Maker reference 246616

246616 BARETTE

More information

Quantity required : 1

WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404

4
P2R reference P2R reference 65414
Maker reference Maker reference 0164045

WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404

More information

Quantity required : 14

SCREW TH (4X12) OEM PIAGGIO COMMON A LA RANGE-031027

5
P2R reference P2R reference 65630
Maker reference Maker reference 0310275

SCREW TH (4X12) OEM PIAGGIO COMMON A LA RANGE-031027

More information

Quantity required : 2

118652 - TIRANT AR TL2

6
P2R reference P2R reference 111509
Maker reference Maker reference 118652

118652 TIRANT AR TL2

More information

Quantity required : 2

SCREW TH (6X12) OEM PIAGGIO COMMON A LA RANGE-031086

7
P2R reference P2R reference 65637
Maker reference Maker reference 0310865

SCREW TH (6X12) OEM PIAGGIO COMMON A LA RANGE-031086

More information

Quantity required : 2

246387 - PLAQUE

8
P2R reference P2R reference 111886
Maker reference Maker reference 246387

246387 PLATE

More information

Quantity required : 1

TAIL GATE ACTUATOR "PIAGGIO GENUINE PARTS" APE -56606R-

9
P2R reference P2R reference 120853
Maker reference Maker reference 56606R

VERIN A THROTTLE DE HAYON OEM PIAGGIO THREE-WHEELER APE-56606R

More information

Quantity required : 1

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

10
P2R reference P2R reference 65419
Maker reference Maker reference 0164105

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

More information

Quantity required : 1

GRIP DE HAYON LIVRE WITH BARRILLET OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-257094

11
P2R reference P2R reference 118838
Maker reference Maker reference 257094

GRIP DE HAYON LIVRE WITH BARRILLET OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-257094

More information

Quantity required : 1

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

12
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

More information

Quantity required : 2

217166 - PIVOT

13
P2R reference P2R reference 111344
Maker reference Maker reference 217166

217166 PIVOT

More information

Quantity required : 1

2469815 - ABATTANT

14
P2R reference P2R reference 122624
Maker reference Maker reference 2469815

2469815 LID

More information

Quantity required : 1

GASKET GARNITURE ADHESIF (L2475) OEM PIAGGIO THREE-WHEELER APE 50 1980 >-CM255507

15
P2R reference P2R reference 118455
Maker reference Maker reference CM255507

GASKET GARNITURE ADHESIF (L2475) OEM PIAGGIO THREE-WHEELER APE 50 1980 >-CM255507

More information

Quantity required : 1
