Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T E4 2018-2021
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

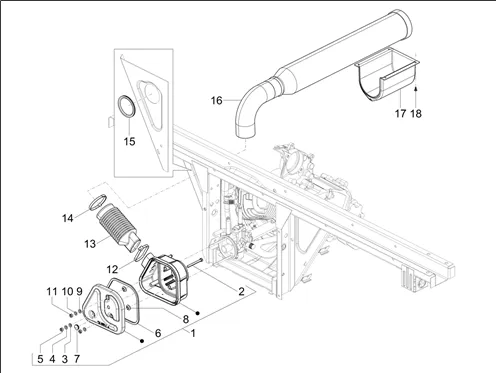

Moteur : 01.45 FILTRE À AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1011/Ape_50_2T_E4_2018-2021_01.45.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/9/5/4/1/img/179541.jpg)
1 |
AIR FILTER COMPLETE OEM PIAGGIO THREE-WHEELER APE 50 2T E4 2018 >-1A011442 More informationQuantity required : 1 |
||||||
2 |
B014245 BOLT More informationQuantity required : 1 |
||||||
|
3 |
003055-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
4 |
WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
5 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/3/3/img/111033.jpg)
6 |
GASKET OF HOUSING AIR FILTER OEM PIAGGIO 50 THREE-WHEELER APE 1980 >-295331 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/3/img/65673.jpg)
7 |
CAP DE BODY DE AIR FILTER OEM PIAGGIO 125 PX-087975 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/6/img/68586.jpg)
8 |
WASHER T (5X14) DE SHEET METAL EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-826118 More informationQuantity required : 2 |
||||||
|
9 |
003055-WASHER More informationQuantity required : 2 |
||||||
|
10 |
WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965 More informationQuantity required : 2 |
||||||
|
11 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 2 |
||||||
|
12 |
|
||||||
|
13 |
SOUFFLET HOUSING DE AIR FILTER OEM PIAGGIO THREE-WHEELER APE 50 > 1998-119995 More informationQuantity required : 1 |
||||||
|
14 |
|
||||||
|
15 |
220549 - JOINT More informationQuantity required : 1 |
||||||
|
16 |
1A011448 HOSE More informationQuantity required : 1 |
||||||
|
17 |
PROTECTOR DE HOSE D'ADMISSION D'AIR OEM PIAGGIO THREE-WHEELER APE 50 > 1998-243831 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
18 |
SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432 More informationQuantity required : 4 |
