Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T E4 2018-2021
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

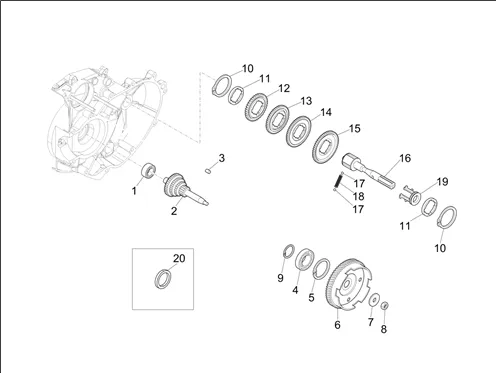

Moteur : 01.31 COMPOSANTS DE LA BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1011/Ape_50_2T_E4_2018-2021_01.31.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/6/5/img/151165.JPG)
1 |
BEARING BOX OF SPEED (10X30X9) OEM PIAGGIO THREE-WHEELER 50 APE-007035 More informationQuantity required : 1 |
||||||
|
1 |
BEARING BOX OF SPEED (10X30X9) OEM PIAGGIO THREE-WHEELER 50 APE-007035 More informationQuantity required : 1 |
||||||
2 |
1250834 GEAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/0/img/65340.jpg)
3 |
CLAVETTE D'ARBRE DE BOX OF SPEED OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 >/50 FL2 1997 <-011753 More informationQuantity required : 1 |
||||||
|
4 |
007130 BEARING 25X47X8 MM S00713000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
5 |
CLIPS/CIRCLIPS (47X50. 5X1. 75) OEM PIAGGIO COMMON A TOUTE LA RANGE-006647 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/8/9/5/img/122895.jpg)
6 |
CAGE CLUTCH OEM PIAGGIO THREE-WHEELER APE 50 1998 >-436951 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/0/img/65990.jpg)
7 |
WASHER BRAKE OEM PIAGGIO COMMON ALA RANGE THREE-WHEELER 50 APE-230359 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/5/7/img/63757.jpg)
8 |
NUT GEAR OEM PIAGGIO 50 THREE-WHEELER APE 2T 1980 >-001508 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/7/img/63817.jpg)
9 |
CLIPS/CIRCLIPS (22. 1) OEM PIAGGIO COMMON A TOUTE LA RANGE-006425 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/6/3/img/63863.jpg)
10 |
CIRCLIPS BOX OF SPEED OEM PIAGGIO APE/VESPA PX 125 1998 >-009101 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/3/8/img/65738.jpg)
11 |
WASHER EPAISSEUR TRANSMISSION OEM PIAGGIO 125 PX/THREE-WHEELER APE 50 2T, TM 703 FUEL-138393 More informationQuantity required : 1 |
||||||
|
11 |
165418-BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/3/img/65763.jpg)
11 |
WASHER/BUSH 2 MAJORATION BOX OEM PIAGGIO 125 PX 2005 <-165417 More informationQuantity required : 1 |
||||||
|
12 |
2854224 GEAR More informationQuantity required : 1 |
||||||
|
13 |
1654504-GEAR More informationQuantity required : 1 |
||||||
|
14 |
1654494-SPROCKET 2EM More informationQuantity required : 1 |
||||||
|
15 |
1654574 GEAR More informationQuantity required : 1 |
||||||
|
16 |
2425815 SHAFT SECONDAIRE More informationQuantity required : 1 |
||||||
|
17 |
006379-BILLE S00637900 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/8/img/65748.jpg)
18 |
SPRING BOX OF SPEED OEM PIAGGIO APE 50/VESPA 50 FL2 < 1997-150110 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/3/3/img/65733.jpg)
19 |
CROISSILLON BOX 4 SPEED OEM PIAGGIO 50 FL2/THREE-WHEELER APE 50 1980 >-1349026 More informationQuantity required : 1 |
||||||
|
20 |
B017344 SPACER More informationQuantity required : 1 |
