Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T E4 2018-2021
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

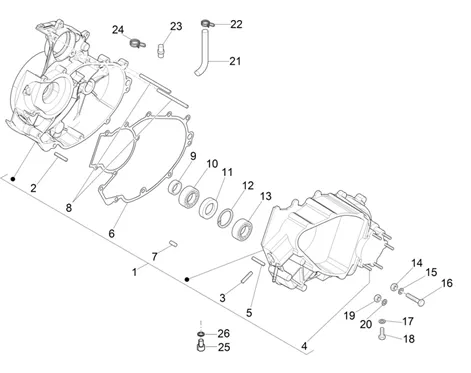

Moteur : 01.05 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1011/Ape_50_2T_E4_2018-2021_01.05.png)
1 |
1A0115825 CASING More informationQuantity required : 1 |
||||||
|
1 |
Carter |
||||||
|
2 |
000480-STUD S00048000 More informationQuantity required : 4 |
||||||
|
3 |
000584-STUD S00058400 More informationQuantity required : 3 |
||||||
|
3 |
1A014215 STUD CYLINDER ATD-T1 More informationQuantity required : 3 |
||||||
|
4 |
015584 STUD S01558400 More informationQuantity required : 5 |
||||||
|
5 |
VIS T.CREUSE 5M80X15 D912/8.8 |
||||||
|
6 |
1A011335 GASKET More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
|
8 |
016036-STUD FIX ENGINE S01603600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/9/5/1/3/img/179513.jpg)
9 |
OIL SEAL (20X32X7) CASING ENGINE OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 >-1A018563 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/7/8/8/img/114788.jpg)
10 |
BEARING (20X47X14) VILLEBREQUIN OEM PIAGGIO APRILIA 50 MOJITO, SR, SCARABEO-090131 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/8/0/2/img/113802.jpg)
11 |
OIL SEAL (21. 2X47X7. 5) VILLEBREQUIN OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 >, VESPA VINTAGE-289305 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
12 |
CLIPS/CIRCLIPS (47X50. 5X1. 75) OEM PIAGGIO COMMON A TOUTE LA RANGE-006647 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/0/0/img/65800.jpg)
13 |
ROLLER CAGE (16X22X12) OEM PIAGGIO COMMON A LA RANGE-182015 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/2/img/65462.jpg)
14 |
NUT (M7X5. 5) DE CYLINDER HEAD OEM PIAGGIO THREE-WHEELER APE 50/VESPA PX 125-020107 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/7/img/65417.jpg)
15 |
WASHER GROWER (6, 7X12X1. 9) OEM PIAGGIO COMMON A LA RANGE-016407 More informationQuantity required : 13 |
||||||
|
16 |
015646 STUD S01564600 More informationQuantity required : 2 |
||||||
|
16 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PARTS" APE 50 2 STROKE 1998>2018 -008420 More informationQuantity required : 6 |
||||||
|
16 |
008327 BOLT S00832700 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/2/3/img/111323.JPG)
16 |
BOLT SERRAGE (7X90) OEM PIAGGIO-015647 More informationQuantity required : 1 |
||||||
|
16 |
008499-BOLT S00849900 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
17 |
GASKET OF VIDANGE CASING DE TRANSMISSION (8, 2X12X1) OEM PIAGGIO COMMON A TOUTE LA RANGE-485703-X000D More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/3/7/img/65737.jpg)
18 |
CAP DE VIDANGE REDUCTEUR TRANSMISSION OEM PIAGGIO 125 VESPA PX, COMMON A LA RANGE SCOOTER 50 CC 1998 > 2004-138345 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/4/img/65454.jpg)
19 |
NUT (M7) DE CASING TRANSMISSION OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 >-020007 More informationQuantity required : 3 |
||||||
|
20 |
|
||||||
|
21 |
CM002306 HOSE FUEL More informationQuantity required : 1 |
||||||
|
22 |
104296-SPRING More informationQuantity required : 1 |
||||||
|
23 |
0193014-RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/2/img/72892.jpg)
24 |
HOSE CLAMP HOSE (9, 4X12) OEM PIAGGIO COMMON A LA RANGE-CM002905 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
25 |
SCREW BTR (8X12) OEM PIAGGIO COMMON A LA RANGE-269755 More informationQuantity required : 1 |
||||||
|
26 |
GASKET OF VIDANGE CASING DE TRANSMISSION (8, 2X12X1) OEM PIAGGIO COMMON A TOUTE LA RANGE-485703-X000D More informationQuantity required : 1 |
