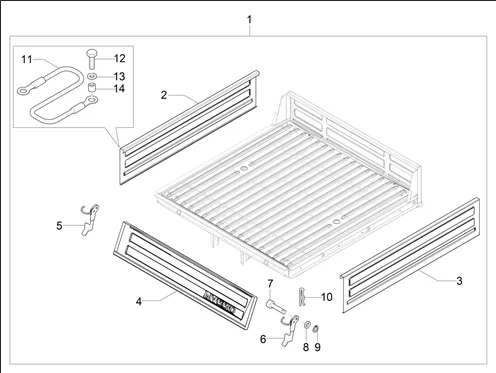

Châssis - parties plastiques - carrosseries : 02.17 BENNE OUVERTE - RIDELLES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1011/Ape_50_2T_E4_2018-2021_02.17.png)
1 |
CM2974015 PLATEAU More informationQuantity required : 1 |
||||||
|
1 |
CM2974025 PLATEAU More informationQuantity required : 1 |
||||||
|
1 |
CM2974035 PLATEAU More informationQuantity required : 1 |
||||||
|
2 |
CM0314026 - SPONDA SX CPI More informationQuantity required : 1 |
||||||
|
2 |
CM0314046 - SPONDA SX CPI More informationQuantity required : 1 |
||||||
|
3 |
CM0314016 - SPONDA DX CPI More informationQuantity required : 1 |
||||||
|
3 |
CM0314036 - PARTIE LAT. TROIT More informationQuantity required : 1 |
||||||
|
4 |
REAR DROP SIDE "PIAGGIO GENUINE PART" PIAGGIO 50 APE -5653886- More informationQuantity required : 1 |
||||||
|
5 |
GRIP LEFT RIDELLE OEM PIAGGIO THREE-WHEELER APE 50 1980 >-116627 More informationQuantity required : 1 |
||||||
|
6 |
GRIP RIGHT RIDELLE OEM PIAGGIO THREE-WHEELER APE 50 1980 >-118917 More informationQuantity required : 1 |
||||||
|
7 |
090742 SPINDLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/2/img/65422.jpg)
8 |
WASHER PLATE (8. 2X13X2) OEM PIAGGIO COMMON A LA RANGE-016604 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/8/img/63798.jpg)
9 |
CLIPS OEM PIAGGIO COMMON A LA RANGE-005967 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/3/img/65353.jpg)
10 |
GOUPILLE (1. 2X12) OEM PIAGGIO COMMON A LA RANGE-012761 More informationQuantity required : 2 |
||||||
|
11 |
565779 CABLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/1/img/65641.jpg)
12 |
SCREW TH (6X20) OEM PIAGGIO COMMON A LA RANGE-031090 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
13 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 6 |
||||||
|
14 |
243710 - ENTRETOISE More informationQuantity required : 4 |
