Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T E4 2018-2021
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

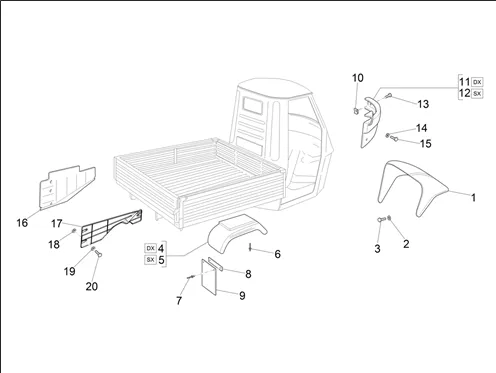

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1011/Ape_50_2T_E4_2018-2021_02.33.png)
1 |
567168 MUDGUARD AV * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
2 |
WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
3 |
SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089 More informationQuantity required : 4 |
||||||
|
4 |
567178 MUDGUARD RIGHT More informationQuantity required : 1 |
||||||
|
5 |
567177 MUDGUARD LEFT More informationQuantity required : 1 |
||||||
|
6 |
244474 RIVET More informationQuantity required : 8 |
||||||
|
7 |
298930 - RIVET More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/2/0/img/111220.jpg)
8 |
264165 - EQUERRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/8/6/4/img/113864.jpg)
9 |
264097 - PARE BOUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/0/5/img/110605.jpg)
10 |
NUT SHEET METAL (5 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017416 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/6/8/7/img/115687.jpg)
11 |
PROTECTOR CHOC FRONT RIGHT OEM PIAGGIO THREE-WHEELER APE 50 1998 >-567169 More informationQuantity required : 1 |
||||||
|
12 |
PROTECTOR CHOC FRONT LEFT OEM PIAGGIO THREE-WHEELER APE 50 1998 >-567170 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/4/0/img/110240.jpg)
13 |
SCREW PARKER (5. 6X19) CRUCIFORME HEAD FRAISEE OEM PIAGGIO COMMON A LA RANGE-258407 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/3/img/65363.jpg)
14 |
WASHER PLATE (3. 8X9X0. 5) OEM PIAGGIO COMMON A LA RANGE-013836 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
15 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 4 |
||||||
|
16 |
LEG SHIELD DE PROTECTOR LEFT OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 >-119839 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
18 |
NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
19 |
WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763 More informationQuantity required : 4 |
||||||
|
20 |
008246 SCREW More informationQuantity required : 4 |
