Vehicle Exploded View - PIAGGIO X8 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

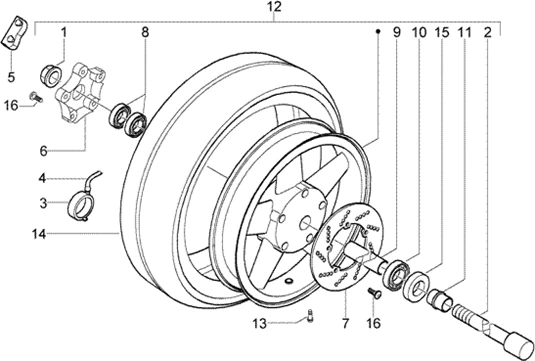

Suspensions-roues : T46 ROUE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/421/X8_200_1998-2005_T46.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
1 |
NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/4/img/67054.jpg)
2 |
564446 - AXE ROUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/0/6/img/67006.jpg)
3 |
SPEEDOMETER SOCKET "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, 125-250-300-400-500 BEVERLY, HEXAGON 12 POUCES/GILERA 50-125 RUNNER -56147R5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/8/5/img/80085.jpg)
3 |
SPEEDOMETER SOCKET "PIAGGIO GENUINE PART" 125-250-300 X7, 125-250-400 X8 -56446R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/8/6/2/img/86862.jpg)
4 |
CABLE KIT FOR SPEEDOMETER "PIAGGIO GENUINE PART" 125-250-400 X8 2005> -648572 More informationQuantity required : 1 |
||||||
5 |
599931 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/5/4/6/img/82546.jpg)
6 |
FRONT WHEEL HUB COVER "PIAGGIO GENUINE PART" 125-250 X-EVO, X8, X7 -599423 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/9/img/67039.jpg)
7 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" 125-250 X7 AV, X8 AV, X-EVO AV, 500 X9 AV, BEVERLY AV/GILERA 125-250-300-500 NEXUS AV -56393R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
8 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -649910 More informationQuantity required : 2 |
||||||
|
9 |
564447 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
10 |
649911 - ROULEMENT More informationQuantity required : 1 |
||||||
|
11 |
564448 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
12 |
56374R - ROUE AV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
13 |
597679 - TUBELESS VALVE More informationQuantity required : 1 |
||||||
|
14 |
666381 - PNEU 120/70-14" MICHELIN CITY GRIP More informationQuantity required : 1 |
||||||
|
14 |
564980 - PNEU PIRELLI 120/70-14 55P TL GTS23 More informationQuantity required : 1 |
||||||
|
15 |
564489 - GODET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
16 |
BRAKE DISC SCREW (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152 More informationQuantity required : 10 |
