Vehicle Exploded View - PIAGGIO X8 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

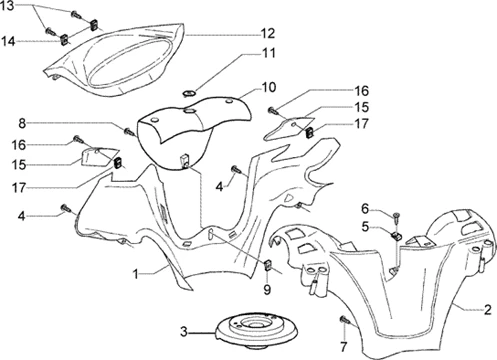

Châssis : T40 PROTECTION GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/421/X8_200_1998-2005_T40.PNG)
1 |
STEERING COVER- "PIAGGIO GENUINE PART" 125-250-500 X9 BLACK -581494000P More informationQuantity required : 1 |
||||||
|
2 |
655889000P - CACHE DIRECTION AR More informationQuantity required : 1 |
||||||
|
3 |
647035 - PROTECTION CACHE DIRECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/5/5/img/65955.jpg)
4 |
227983 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
5 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017409 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
6 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
7 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/6/img/66036.jpg)
8 |
259372 - VIS More informationQuantity required : 1 |
||||||
|
9 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017409 More informationQuantity required : 1 |
||||||
|
10 |
59941500ED - TABLEAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/8/3/2/img/77832.jpg)
11 |
EMBLEM - "PIAGGIO GENUINE PART" 125-250-500 X9, BEVERLY, 125-250 X8 -295486 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/4/2/8/img/80428.jpg)
11 |
DECAL - TO CLIP "PIAGGIO GENUINE PART" 50-125 ZIP, FLY, LIBERTY, 125-250 X8 -574771 More informationQuantity required : 1 |
||||||
|
12 |
62258500ED - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
13 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
14 |
NUT / PLATE FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM017408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/5/7/6/img/81576.jpg)
15 |
581496000P - COUVERTURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/5/7/8/img/81578.jpg)
15 |
581497000P - COUVERTURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/6/3/img/67663.jpg)
16 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER + MOTORBIKE -621914 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/9/3/img/95193.jpg)
17 |
CM017418 - PLAQUE More informationQuantity required : 2 |
All the exploded views of this vehicle
-
