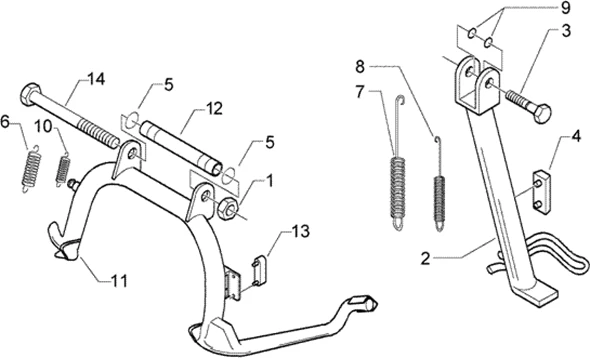

Vehicle Exploded View - PIAGGIO X8 200 1998-2005 PIAGGIO

Châssis : T23 BEQUILLES
BEQUILLES
Search
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440

1
P2R reference P2R reference 63765
Maker reference Maker reference 0024405

NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440

More information

Quantity required : 1

SIDE STAND "PIAGGIO GENUINE PART" X8 125-250-400 2004> -647827

2
P2R reference P2R reference 86751
Maker reference Maker reference 647827

SIDE STAND "PIAGGIO GENUINE PART" X8 125-250-400 2004> -647827

More information

Quantity required : 1

599097 - VIS

3
P2R reference P2R reference 82466
Maker reference Maker reference 599097

599097 - VIS

More information

Quantity required : 1

CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER + MAXISCOOTER -582885

4
P2R reference P2R reference 67268
Maker reference Maker reference 582885

CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER + MAXISCOOTER -582885

More information

Quantity required : 1

STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -273754

5
P2R reference P2R reference 66127
Maker reference Maker reference 273754

STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -273754

More information

Quantity required : 2

SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -581249

6
P2R reference P2R reference 67209
Maker reference Maker reference 581249

SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -581249

More information

Quantity required : 1

SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -295789

7
P2R reference P2R reference 66287
Maker reference Maker reference 295789

SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -295789

More information

Quantity required : 1

SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -295788

8
P2R reference P2R reference 66286
Maker reference Maker reference 295788

SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -295788

More information

Quantity required : 1

SPACER- M23-M27 FOR SIDE STAND "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -191189

9
P2R reference P2R reference 65812
Maker reference Maker reference 191189

SPACER- M23-M27 FOR SIDE STAND "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -191189

More information

Quantity required : 2

SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -581248

10
P2R reference P2R reference 67208
Maker reference Maker reference 581248

SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -581248

More information

Quantity required : 1

CENTER STAND "PIAGGIO GENUINE PART" 125 MP3 2006>2008, X8 2004>2006, X-EVO 2007> -56469R

11
P2R reference P2R reference 80120
Maker reference Maker reference 56469R

CENTER STAND "PIAGGIO GENUINE PART" 125 MP3 2006>2008, X8 2004>2006, X-EVO 2007> -56469R

More information

Quantity required : 1

SPACER- FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -582298

12
P2R reference P2R reference 67251
Maker reference Maker reference 582298

SPACER- FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -582298

More information

Quantity required : 1

CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" FOR MAXISCOOTERS RANGE -581560

13
P2R reference P2R reference 67224
Maker reference Maker reference 581560

CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" FOR MAXISCOOTERS RANGE -581560

More information

Quantity required : 1

SCREW - FOR CENTRAL STAND 10X130 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -030115

14
P2R reference P2R reference 65625
Maker reference Maker reference 0301155

SCREW - FOR CENTRAL STAND 10X130 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -030115

More information

Quantity required : 1
