Vehicle Exploded View - PIAGGIO X8 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

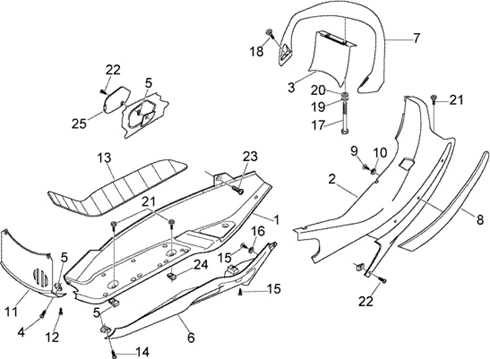

Châssis : T29 PROTECTIONS LATERALES-SPOILER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/421/X8_200_1998-2005_T29.PNG)
1 |
62359200E8 - REPOSE-PIEDS GAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/9/6/8/img/84968.jpg)
1 |
62401700E8 - REPOSE-PIEDS DR More informationQuantity required : 1 |
||||||
|
2 |
620252 - FLANC ARD.DR.BRUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/5/1/5/img/83515.jpg)
2 |
6202510090 - FLANC GAU NOIR 94 More informationQuantity required : 1 |
||||||
|
2 |
62025100EC - FLANC GAU More informationQuantity required : 1 |
||||||
|
2 |
62025100F2 - FLANC GAU More informationQuantity required : 1 |
||||||
|
2 |
62025100RE - FLANC GAU More informationQuantity required : 1 |
||||||
|
2 |
620252 - FLANC ARD.DR.BRUT More informationQuantity required : 1 |
||||||
|
2 |
62025200EC - FLANC ARD.DR. More informationQuantity required : 1 |
||||||
|
2 |
62025200F2 - FLANC ARD.DR. More informationQuantity required : 1 |
||||||
|
2 |
62025200RE - FLANC ARD.DR. More informationQuantity required : 1 |
||||||
|
3 |
COUVERCLE ARRIERE SUPERIEUR PIAGGIO 125-250-400 X-EVO -6203000090 More informationQuantity required : 1 |
||||||
|
3 |
62030000EC - COUVERCLE ARRIERE SUP. More informationQuantity required : 1 |
||||||
|
3 |
62030000F2 - COUVERCLE ARRIERE SUP. More informationQuantity required : 1 |
||||||
|
3 |
62030000RE - COUVERCLE ARRIERE SUP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
4 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
5 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 18 |
||||||
|
6 |
6202450090 - SPOILER GAU More informationQuantity required : 1 |
||||||
|
6 |
62024500EC - SPOILER GAUCHE 546 X8 More informationQuantity required : 1 |
||||||
|
6 |
LEFT SPOILER- "PIAGGIO GENUINE PART" 125-250 X8 GREY 738/A -62024500F2- More informationQuantity required : 1 |
||||||
|
6 |
62024500RE - SPOILER GAU More informationQuantity required : 1 |
||||||
|
6 |
6202460090 - SPOILER DR More informationQuantity required : 1 |
||||||
|
6 |
62024600EC - SPOILER DR More informationQuantity required : 1 |
||||||
|
6 |
62024600F2 - SPOILER DR More informationQuantity required : 1 |
||||||
|
6 |
62024600RE - SPOILER DR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/5/6/8/img/83568.jpg)
7 |
PASSENGER HANDLE "PIAGGIO GENUINE PART" 125-250-400 X8 -620255000P More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/5/7/1/img/83571.jpg)
8 |
LEFT PANEL PROTECTION "PIAGGIO GENUINE PART" 125-250-400 X8 2004>2006 CHROME -620257- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/5/7/2/img/83572.jpg)
8 |
RIGHT PANEL PROTECTION "PIAGGIO GENUINE PART" 125-250-400 X8 2004>2006 CHROME -620258 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
9 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
10 |
013763 - PLAQUETTE S01376300 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/7/9/3/img/83793.jpg)
11 |
FRONT WHEEL INNER COVER (GRILLE - HORN) "PIAGGIO GENUINE PART" 125 X8 BLACK 94 -6209910090 More informationQuantity required : 1 |
||||||
|
11 |
62408800E8 - COUVERCLE LOGEM.ROUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
12 |
SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836 More informationQuantity required : 2 |
||||||
|
13 |
CM018801 - TAPIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/2/0/7/img/95207.jpg)
13 |
CM018802 - TAPIS More informationQuantity required : 1 |
||||||
|
14 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
15 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 4 |
||||||
|
16 |
013763 - PLAQUETTE S01376300 More informationQuantity required : 2 |
||||||
|
17 |
030062 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/1/img/66041.jpg)
18 |
259708 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
19 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
20 |
013880 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
21 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
22 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 3 |
||||||
|
23 |
SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
24 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 6 |
||||||
|
25 |
TRAPDOOR FOR SPARK PLUG - RIGHT "PIAGGIO GENUINE PART" 125-250-400 X-EVO -62027300E8- More informationQuantity required : 1 |
