Vehicle Exploded View - PIAGGIO X8 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

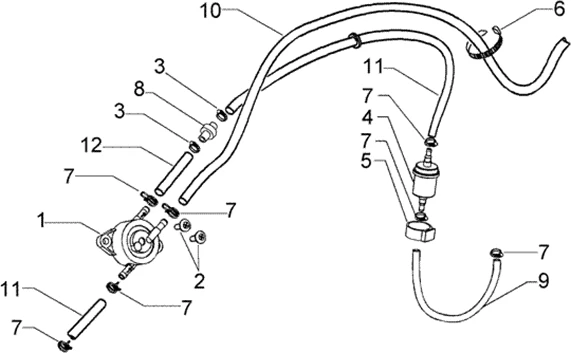

Châssis : T33 CIRCUIT D'ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/421/X8_200_1998-2005_T33.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/2/6/img/73126.jpg)
1 |
FUEL PUMP "PIAGGIO GENUINE PART" 50 FLY 4 STROKE 2012>, NRG 2005>, 125 MP3 2007>, X8 2004>, X-EVO 2007>/ 50-125 GILERA RUNNER 2005>/APRILIA 125 ATLANTIC 2003> -CM120903 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
2 |
SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
3 |
CM002907 - COLLIER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/2/8/9/img/77289.jpg)
4 |
FUEL FILTER "PIAGGIO GENUINE PART" 125 MP3 2007>, X7 2008>, X8 2004>, X9 2003>, X-EVO 2007>, VESPA GTS 2007> 50 FLY 4 STROKE 2005>/GILERA 125 NEXUS 2007>, RUNNER 2004> 50 RUNNER PURE-JET 2005> -270423 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/8/img/66118.jpg)
5 |
272842 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
6 |
257134 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
7 |
CM002904 - COLLIER More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/0/img/71230.jpg)
8 |
ANTI RETURN VALVE (FEEDING SYSTEM) "PIAGGIO GENUINE PART" 125 MP3, X8, X9-EVO, X-EVO/GILERA 125 NEXUS, RUNNER 4 STROKE/APRILIA 125 SPORT-CITY-ONE -AP8104594 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/1/img/72901.jpg)
9 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC + MAXISCOOTER 125 CC -CM006116 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/2/img/72862.jpg)
10 |
FUEL HOSE (5X10) L1060 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -CM001432 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/1/9/img/65919.jpg)
11 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE ( 5M ROLL) -1R000160 More informationQuantity required : 2 |
