Vehicle Exploded View - PIAGGIO X8 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

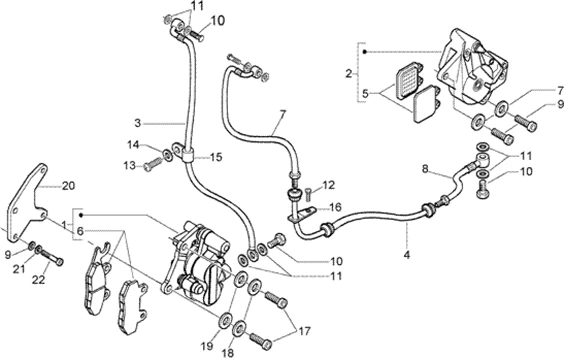

Suspensions-roues : T41 CANALISATION D'HUILE-PINCES FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/421/X8_200_1998-2005_T41.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/8/0/img/72980.jpg)
1 |
FRONT BRAKE CALIPER "PIAGGIO GENUINE PART" 50-125 FLY 2005>, LIBERTY 2009>, VESPA PRIMAVERA 2013>, VESPA SPRIN 2014>, 125 X-EVO, VESPA GTS/GILERA 50 RUNNER, 125 NEXUS, SR-MAX (HENG-TONG SLX 12') -CM068301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/6/2/3/img/95623.jpg)
2 |
REAR BRAKE CALIPER "PIAGGIO GENUINE PART" 125-250 MP3 2006>2008, X8 2005>2007, X-EVO 2007>2016< -CM072009 More informationQuantity required : 1 |
||||||
3 |
599879 - CANALISATEUR More informationQuantity required : 1 |
||||||
|
4 |
CANALISATEUR A FREIN |
||||||
|
4 |
647052 - CANALISATEUR A FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/0/3/img/68003.jpg)
5 |
BRAKE PADS - "PIAGGIO GENUINE PART" 125-250 X9-EVO FRONT+REAR, 125 X8 REAR, 400-500 BEVERLY REAR, 500 X9-EVO/GILERA 500 NEXUS REAR (PAIR) (BREMBO) -647077 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/0/4/img/68004.jpg)
6 |
BRAKE PADS - "PIAGGIO GENUINE PART" 125 X-EVO FRONT, X8 FRONT, X9 FRONT, 125-300 VESPA GTS FRONT, 400 X-EVO FRONT+REAR, 125 FLY FRONT/GILERA 800 GP REAR/APRILIA 854 SRV REAR, 125-300 SR-MAX FRONT+REAR (PAIR) (HENG-TONG) -647078 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/8/1/1/img/82811.jpg)
7 |
REAR BRAKE HOSE "PIAGGIO GENUINE PART" 125-250 MP3, X8, X-EVO -600180- More informationQuantity required : 1 |
||||||
|
8 |
600474 - CANALISATEUR A FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/4/img/63804.jpg)
9 |
006173 - RONDELLE S00617300 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/0/img/66050.jpg)
10 |
SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
11 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
12 |
969296 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/4/img/65714.jpg)
13 |
122675 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
14 |
006966 - RONDELLE S00696600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/1/img/66081.jpg)
15 |
269273 - COLLIER TUYAU More informationQuantity required : 1 |
||||||
|
16 |
PLAQUETTE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
17 |
SCREW - MULTI PURPOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -319165 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/2/img/65422.jpg)
18 |
016604 - RONDELLE S01660400 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
19 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
||||||
|
20 |
649553 - PLAQUE ETRIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/8/8/img/80088.jpg)
21 |
SCREW - FOR BRAKE CALIPER SUPPORT "PIAGGIO GENUINE PART" X8 125 1998>2006, X9 125 1998>2005 / GILERA NEXUS 125-250 2006>2008 -564486 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
22 |
WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535 More informationQuantity required : 2 |
