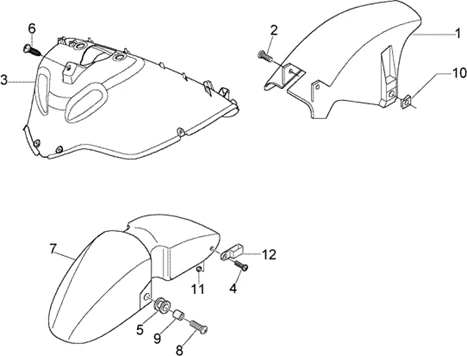

Vehicle Exploded View - PIAGGIO X8 200 1998-2005 PIAGGIO

Châssis : T27 LOGEMENT ROUE-GARDE BOUE
LOGEMENT ROUE-GARDE BOUE
Search
620902 - GARDE BOUE AR

1
P2R reference P2R reference 83761
Maker reference Maker reference 620902

620902 - GARDE BOUE AR

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249

2
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249

More information

Quantity required : 2

62358900E8 - GRILLE RADIATEUR

3
P2R reference P2R reference 84866
Maker reference Maker reference 62358900E8

62358900E8 - GRILLE RADIATEUR

More information

Quantity required : 1

SCREW - (M6x16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836

4
P2R reference P2R reference 66117
Maker reference Maker reference 272836

SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836

More information

Quantity required : 1

217163 - SILENBLOC

5
P2R reference P2R reference 65932
Maker reference Maker reference 217163

217163 - SILENBLOC

More information

Quantity required : 4

SCREW - (M6x16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836

6
P2R reference P2R reference 66117
Maker reference Maker reference 272836

SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836

More information

Quantity required : 1

FRONT MUDGUARD - "PIAGGIO GENUINE PART" 125 X8, X9 BLACK 94 -5982890090-

7
P2R reference P2R reference 82361
Maker reference Maker reference 5982890090

FRONT MUDGUARD - "PIAGGIO GENUINE PART" 125 X8, X9 BLACK 94 -5982890090-

More information

Quantity required : 1

FRONT MUDGUARD - "PIAGGIO GENUINE PART" 125 X8 RED CACHEMIR 546 -59828900EC-

7
P2R reference P2R reference 82368
Maker reference Maker reference 59828900EC

FRONT MUDGUARD - "PIAGGIO GENUINE PART" 125 X8 RED CACHEMIR 546 -59828900EC-

More information

Quantity required : 1

FRONT MUDGUARD - "PIAGGIO GENUINE PART" 125-250 X8 / X9 GREY 738/A -59828900F2-

7
P2R reference P2R reference 82369
Maker reference Maker reference 59828900F2

FRONT MUDGUARD - "PIAGGIO GENUINE PART" 125-250 X8 / X9 GREY 738/A -59828900F2

More information

Quantity required : 1

FRONT MUDGUARD - "PIAGGIO GENUINE PART" 125 X8 RED CHERRY 806/A -59828900RE-

7
P2R reference P2R reference 82372
Maker reference Maker reference 59828900RE

FRONT MUDGUARD - "PIAGGIO GENUINE PART" 125 X8 RED CHERRY 806/A -59828900RE-

More information

Quantity required : 1

SCREW - (6x20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830

8
P2R reference P2R reference 66043
Maker reference Maker reference 259830
Replaced by référence Replaced by référence 73367

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830

More information

Quantity required : 4

598288 - ENTRETOISE

9
P2R reference P2R reference 67360
Maker reference Maker reference 598288

598288 - ENTRETOISE

More information

Quantity required : 4

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

10
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

More information

Quantity required : 2

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245

11
P2R reference P2R reference 66187
Maker reference Maker reference 288245

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245

More information

Quantity required : 1

564836 - COLLIER

12
P2R reference P2R reference 67081
Maker reference Maker reference 564836

564836 - COLLIER

More information

Quantity required : 1
