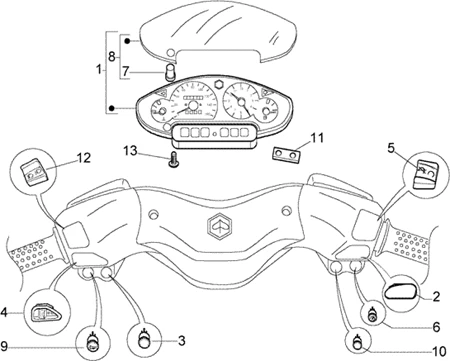

Guidon : T44 DISPOSITIFS ELECTRIQUES-COMPTEUR KILOMETRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/421/X8_200_1998-2005_T44.PNG)
1 |
SPEEDOMETER "PIAGGIO GENUINE PART" X8 -639375 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/3/6/img/71636.jpg)
2 |
COVER FOR DASHBOARD "PIAGGIO GENUINE PART" COMMON TO ALL RANGE -AP8127896 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/7/1/img/67271.jpg)
3 |
BUTTON FOR SEAT OPENING "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER -582988 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/8/4/img/67984.jpg)
4 |
TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" 50 ZIP, TYPHOON, FLY, LYBERTY, 125-250-400 MP3, BEVERLY, X-EVO, X8/GILERA 50 STALKER, RUNNER/APRILIA 50 SR -6426795 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/5/img/67945.jpg)
5 |
ENGINE STOP SWITCH "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -641824 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/6/img/67176.jpg)
6 |
ELECTRIC STARTER SWITCH "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON, NRG, FLY, ZIP, 125 FLY, LIBERTY, 125-250-400 X8, X9, X-EVO, BEVERLY/GILERA 50 STALKER/APRILIA 125-300-500 SCARABEO -58057R More informationQuantity required : 1 |
||||||
|
7 |
497075 - POUSSOIR More informationQuantity required : 1 |
||||||
|
8 |
584988 - DESSUS COMPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/7/img/67177.jpg)
9 |
HORN SWITCH "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON, NRG, FFY, ZIP, 125-250-500 X-EVO, X8, X9, BEVERLY/GILERA 50 STALKER, RUNNER/APRILIA 125-250-400-500 SCARABEO-LIGHT . LEFT -58058R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/2/3/3/img/86233.jpg)
10 |
BUTTON FOR OPENING TRUNK BOX "PIAGGIO GENUINE PART" 125-250-400 MP3, X8, X-EVO -641742 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/0/0/0/img/84000.jpg)
11 |
621364 - SUPPORT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/8/2/img/67982.jpg)
12 |
HEADLIGHT SELECTOR SWITCH "PIAGGIO GENUINE PART" 125-250-300-400 500 MP3, X8, X9, X-EVO, BEVERLY/GILERA 500 FUOCO, 125 RUNNER -642670 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
13 |
SCREW - 5X12 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015585 More informationQuantity required : 4 |
