Vehicle Exploded View - PIAGGIO X8 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

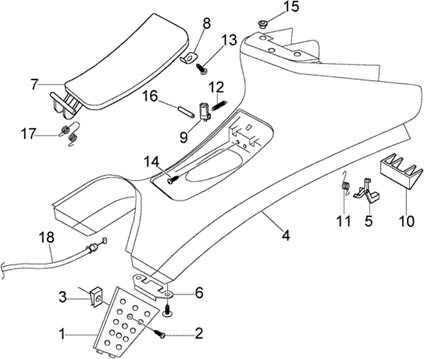

Châssis : T26 PARTIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/421/X8_200_1998-2005_T26.PNG)
1 |
LEFT SIDE COVER "PIAGGIO GENUINE PART" 125 X-EVO, X8 CHROME -CM024401 More informationQuantity required : 1 |
||||||
|
1 |
RIGHT SIDE COVER "PIAGGIO GENUINE PART" 125 X-EVO, X8 CHROME -CM024402 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/0/img/65400.jpg)
2 |
015859 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/2/img/72922.jpg)
3 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017404 More informationQuantity required : 2 |
||||||
|
4 |
6209080090 - COUVERCLE CENTRALE More informationQuantity required : 1 |
||||||
|
4 |
62090800EC - COUVERCLE CENTRALE More informationQuantity required : 1 |
||||||
|
4 |
62460600F2 - COUVERCLE CENTRALE More informationQuantity required : 1 |
||||||
|
4 |
62460600RE - COUVERCLE CENTRALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/5/img/67135.jpg)
5 |
FUEL TRAPDOOR HOOK "PIAGGIO GENUINE PART" BEVERLY, MP3 , X10 , X7, X8, X9, X-EVO -576626 More informationQuantity required : 1 |
||||||
|
6 |
598143 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/5/1/1/img/83511.jpg)
7 |
FUEL TRAPDOOR "PIAGGIO GENUINE PART" 125-250-400 X8 -620250000P More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/1/1/img/72011.jpg)
8 |
FUEL TRAPDOOR BRACKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -AP8161182 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/7/img/67167.jpg)
9 |
577861 - LEVIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/2/7/img/67627.jpg)
10 |
620491 - SUPPORT CROCHET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/7/img/67117.jpg)
11 |
SPRING FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" BEVERLY, MP3, X8, X9, X10, X-EVO -575604 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/2/2/1/img/81221.jpg)
12 |
577399 - RESSORT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
13 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
14 |
SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
15 |
830056 - BAGUE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/2/2/2/img/81222.jpg)
16 |
577400 - AXE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/0/1/9/img/84019.jpg)
17 |
621507 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/1/7/img/95117.jpg)
18 |
TRANSMISSION CABLE KIT- FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" 125-250-400 X-EVO, X8 -CM012814 More informationQuantity required : 1 |
