Vehicle Exploded View - PIAGGIO X8 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

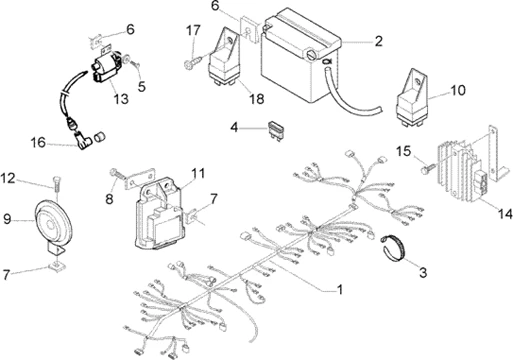

Connexions électriques : T45 DISPOSITIFS ELECTRIQUES-CLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/421/X8_200_1998-2005_T45.PNG)
1 |
584263 - FAISCEAU CABLES X8 More informationQuantity required : 1 |
|||||||||
|
2 |
497629 - BATTERIE 12V 11A 100CCA (PB10L-B) More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
3 |
257134 - COLLIER More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
4 |
252945 - FUSIBLE 7,5A More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
4 |
FUSE 15 AMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -290860 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/4/img/66254.jpg)
4 |
292507 - FUSIBLE 10A More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/2/img/66262.jpg)
4 |
293256 - FUSIBLE More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
5 |
SCREW - 5X21 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015856 More informationQuantity required : 1 |
|||||||||
|
6 |
826275 - PLAQUETTE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
7 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
8 |
B016777 - VIS More informationQuantity required : 1 |
|||||||||
|
8 |
B016777 - VIS More informationQuantity required : 1 |
|||||||||
|
9 |
58092R - AVERTISSEUR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
10 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC (12V-80A) -58115R More informationQuantity required : 1 |
|||||||||
|
11 |
58054R - DISPOSITIF ELECTR.IMM. More informationQuantity required : 1 |
|||||||||
|
12 |
B016777 - VIS More informationQuantity required : 1 |
|||||||||
|
12 |
B016777 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/6/img/67186.jpg)
13 |
IGNITION COIL "PIAGGIO GENUINE PART" 125 MP3, FLY, X8, X9-EVO, ZIP, X-EVO/GILERA 125 NEXUS, RUNNER 4 STROKE/APRILIA 125 SPORT-CITY-ONE -58083R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/7/img/67187.jpg)
14 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 125 BEVERLY, FLY, LIBERTY, MP3, X7, X8, X9, X-EVO, VESPA GTS, PRIMAVERA, VESPA SPRINT, VESPA LX/APRILIA 125 ATLANTIC, MOJITO, RS4/GILERA 125 NEXUS -58090R5 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
15 |
031091 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/9/img/70969.jpg)
16 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER RANGE -969348 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
17 |
1A003109 - VIS M5X16 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/8/img/67258.jpg)
18 |
RELAY FOR ELECTRIC STARTER 12V 30A "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -58246R More informationQuantity required : 1 |
|||||||||
|
18 |
497629 - BATTERIE 12V 11A 100CCA (PB10L-B) More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/2/2/img/67822.jpg)
19 |
639082 - COLLIER More informationQuantity required : 1 |
|||||||||
