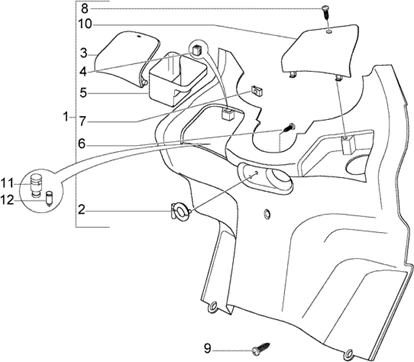

Vehicle Exploded View - PIAGGIO X8 200 1998-2005 PIAGGIO

Châssis : T25 BOUCLIER AR.
BOUCLIER AR.
Search
COUNTER SHIELD "PIAGGIO GENUINE PART" 125-250 X8 2004>2006, X-EVO 2007>GREY -620911000P

1
P2R reference P2R reference 83779
Maker reference Maker reference 620911000P

COUNTER SHIELD "PIAGGIO GENUINE PART" 125-250 X8 2004>2006, X-EVO 2007>GREY -620911000P

More information

Quantity required : 1

HAND BAG HOOK "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTERS+ MAXISCOOTERS -575819

2
P2R reference P2R reference 67122
Maker reference Maker reference 575819

HAND BAG HOOK "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTERS+ MAXISCOOTERS -575819

More information

Quantity required : 1

GLOVE COMPARTMENT COVER (LEFT) "PIAGGIO GENUINE PART" 125-250-400 X8 - BLACK -620995000P

3
P2R reference P2R reference 83798
Maker reference Maker reference 620995000P

GLOVE COMPARTMENT COVER (LEFT) "PIAGGIO GENUINE PART" 125-250-400 X8 - BLACK -620995000P

More information

Quantity required : 1

621112 - SERRURE COUVRE CONTRE TABLIER

4
P2R reference P2R reference 83823
Maker reference Maker reference 621112

621112 - SERRURE COUVRE CONTRE TABLIER

More information

Quantity required : 1

GLOVE BOX/SIDE POCKET - LEFT "PIAGGIO GENUINE PART" 125-250 X-EVO -620996000C

5
P2R reference P2R reference 83799
Maker reference Maker reference 620996000C

GLOVE BOX/SIDE POCKET - LEFT "PIAGGIO GENUINE PART" 125-250 X-EVO -620996000C

More information

Quantity required : 1

GLOVE BOX/SIDE POCKET - LEFT "PIAGGIO GENUINE PART" 125-250 X8, 250 X-EVO -620996000P

5
P2R reference P2R reference 83800
Maker reference Maker reference 620996000P
Replaced by référence Replaced by référence 83799

GLOVE BOX/SIDE POCKET - LEFT "PIAGGIO GENUINE PART" 125-250 X8, 250 X-EVO -620996000P

More information

Quantity required : 1

SCREW - 4,2x13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349

6
P2R reference P2R reference 66035
Maker reference Maker reference 259349

SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349

More information

Quantity required : 2

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

7
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

More information

Quantity required : 19

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249

8
P2R reference P2R reference 66028
Maker reference Maker reference 258249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249

More information

Quantity required : 15

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249

9
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249

More information

Quantity required : 2

GLOVE COMPARTMENT COVER (RIGHT) "PIAGGIO GENUINE PART" 125-250-400 X8 - BLACK -620994000P

10
P2R reference P2R reference 83796
Maker reference Maker reference 620994000P

GLOVE COMPARTMENT COVER (RIGHT) "PIAGGIO GENUINE PART" 125-250-400 X8 - BLACK -620994000P

More information

Quantity required : 1

294770 - PRISE B T

11
P2R reference P2R reference 66275
Maker reference Maker reference 294770

294770 - PRISE B T

More information

Quantity required : 1

581415 - BOUTON DE REMISE A ZERO

12
P2R reference P2R reference 81564
Maker reference Maker reference 581415

581415 - BOUTON DE REMISE A ZERO

More information

Quantity required : 1
