Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 8V STD NTX 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

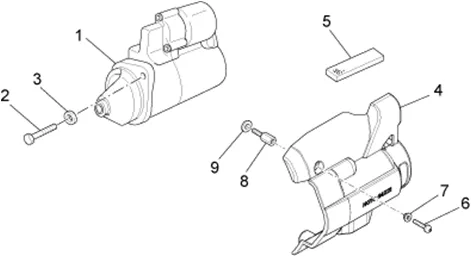

Moteur : 34.64 DÉMARREUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/519/Stelvio_1200_8V_STD_NTX_2011-2015_34.64.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/1/4/8/img/100148.jpg)
1 |
STARTER MOTOR (BOSCH) OEM PIAGGIO MOTO-GUZZI 1200 NORGE, STELVIO, GRISO, 1400 CALIFORNIA, AUDACE, V7, V9, BELLAGIO, V85 > 2019-97729R More informationQuantity required : 1 |
||||||
2 |
GU98082475-SCREW M8X75 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.jpg)
3 |
WASHER 8, 4X15X1, 8 COMMON A LA RANGE MOTO GUZZI/APRILIA-GU95008208 More informationQuantity required : 2 |
||||||
|
4 |
887329-COPERTURA MOTORINO AVVIAMENTO More informationQuantity required : 1 |
||||||
|
5 |
AP8117200-EPONGE ADHESIVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/0/8/1/img/126081.jpg)
6 |
SCREW BTR HEAD BOMBEE (6X10) OEM PIAGGIO COMMON A LA RANGE-GU98370609 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
7 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/7/1/0/img/102710.jpg)
8 |
COLONNETTE OEM MOTO GUZZI COMMON A LA RANGE-GU03469201 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
9 |
WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800 More informationQuantity required : 1 |
