Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 8V STD NTX 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

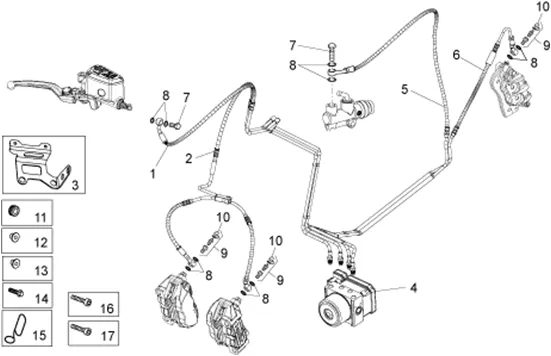

Chassis : 33.39 SYSTEME FREIN ABS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/519/Stelvio_1200_8V_STD_NTX_2011-2015_33.39.PNG)
1 |
886162-TUBO PUMP ANT/CENTRALINA ABS More informationQuantity required : 1 |
||||||
|
2 |
886164-TUBO PINZE ANT/CENTRALINA ABS More informationQuantity required : 1 |
||||||
|
3 |
886149-CONTROPIASTRA More informationQuantity required : 1 |
||||||
|
4 |
2D000193-CENTRE More informationQuantity required : 1 |
||||||
|
5 |
886163-TUBO PUMP POST/CENTRALINA ABS More informationQuantity required : 1 |
||||||
|
6 |
886165 - TUBO PINZA POST / CENTRALINA ABS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
7 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
8 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 10 |
||||||
|
9 |
AP8133945-KIT SPURGO ANT More informationQuantity required : 3 |
||||||
|
10 |
AP8113070-CAPUCHON RENIFLARD More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
11 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
12 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
13 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
14 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
||||||
|
15 |
AP8201417-GUIDE CABLE HOSE BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/7/3/img/132973.jpg)
16 |
SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-GU98230625 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/1/img/68461.jpg)
17 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-672380 More informationQuantity required : 2 |
