Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 8V STD NTX 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

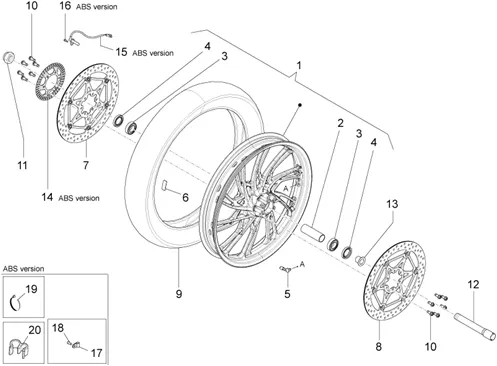

Chassis : 33.46 ROUE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/519/Stelvio_1200_8V_STD_NTX_2011-2015_33.46.PNG)
1 |
ALUMINIUM FRONT WHEEL "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 STELVIO -897629- More informationQuantity required : 1 |
|||||||||
|
2 |
978516-SPACER ROULEMENTS More informationQuantity required : 1 |
|||||||||
|
3 |
AP8125777-BEARING More informationQuantity required : 2 |
|||||||||
|
4 |
OIL SEAL (30X47X7) OEM PIAGGIO COMMON A LA RANGE-AP8125773 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/1/0/img/128210.jpg)
5 |
VALVE TUBELESS OEM MOTO GUZZI COMMON A LA RANGE-GU03617710 More informationQuantity required : 1 |
|||||||||
|
6 |
GU14616150-CONTREPOIDS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/2/2/0/4/5/img/222045.JPG)
7 |
BRAKE DISC FRONT RIGHT OEM PIAGGIO APRILIA 900 SHIVER, DORSODURO, 1200 CAPONORD, DORSODURO/MOTO-GUZZI 1200 NORGE, STELVIO-2B015408 More informationQuantity required : 1 |
|||||||||
|
7 |
896011 - DISQUE FREIN AVT DRT D 320 More informationQuantity required : 1 |
|||||||||
|
7 |
FRONT BRAKE DISC - RIGHT "PIAGGIO GENUINE PART" APRILIA 900 SHIVER, DORSODURO, 1200 CAPONORD, DORSODURO/MOTO-GUZZI 1200 NORGE, STELVIO -B044279 More informationQuantity required : 1 |
|||||||||
|
8 |
896012 - DISQUE FREIN AVT G 320 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/5/8/img/109058.jpg)
8 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD 2014>2016, 900-1200 DORSODURO 2016>, 900 SHIVER 2017>, 1000 TUONO 2011>/MOTO-GUZZI 1200 NORGE 2010>, STELVIO 2011> -B044280 More informationQuantity required : 1 |
|||||||||
|
9 |
Pneu s. chambre |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
10 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 12 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/8/4/img/50984.jpg)
11 |
NUT DE WHEEL OEM APRILIA COMMON A LA RANGE MOTO-AP8152335 More informationQuantity required : 1 |
|||||||||
|
11 |
NUT DE WHEEL OEM APRILIA COMMON A LA RANGE MOTO-AP8152335 More informationQuantity required : 1 |
|||||||||
|
12 |
978030-PERNO WHEEL ANT More informationQuantity required : 1 |
|||||||||
|
13 |
GU06616300-SPACER More informationQuantity required : 1 |
|||||||||
|
14 |
FLASQUE ABS FRONT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI 1200 NORGE, STELVIO-AP8128189 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
15 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
|||||||||
|
15 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
16 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 1 |
|||||||||
|
17 |
859777-PLATE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/1/img/72141.jpg)
18 |
SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-AP8201749 More informationQuantity required : 1 |
|||||||||
|
19 |
GU49609601-CLAMP 2, 4X92 More informationQuantity required : 1 |
|||||||||
|
20 |
894704-GUIDE-CABLE More informationQuantity required : 3 |
|||||||||
