Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 8V STD NTX 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

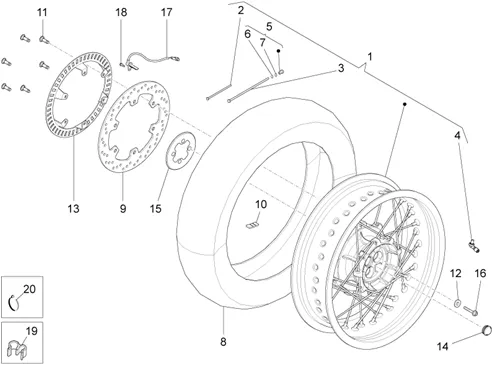

Chassis : 33.35 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/519/Stelvio_1200_8V_STD_NTX_2011-2015_33.35.PNG)
1 |
SPOKED REAR WHEEL "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 STELVIO NTX -883433- More informationQuantity required : 1 |
||||||
|
1 |
884094-WHEEL POSTERIORE RAGGIATA More informationQuantity required : 1 |
||||||
|
1 |
884166 - RUOTA POST RAGGIATA (CERCHIO GIANT) More informationQuantity required : 1 |
||||||
|
2 |
887082-RAGGIO POSTERIORE CORTO More informationQuantity required : 18 |
||||||
|
2 |
978815-RAGGIO More informationQuantity required : 18 |
||||||
|
3 |
887083-RAGGIO POSTERIORE LUNGO More informationQuantity required : 18 |
||||||
|
3 |
978816-RAGGIO More informationQuantity required : 18 |
||||||
|
4 |
978814-* VALVOLA TUBLESS * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/9/img/71159.jpg)
4 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8101744 More informationQuantity required : 1 |
||||||
|
5 |
978810-NIPPLO SISTEMA STS More informationQuantity required : 36 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/7/6/6/img/100766.jpg)
6 |
ANNEAU ELASTIC NUT DE SPOKE TUBELESS OEM PIAGGIO MOTO-GUZZI 940 BELLAGIO, 1400 ELDORADO, 1200 STELVIO, GRISO-978811 More informationQuantity required : 36 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/0/8/img/132208.jpg)
7 |
O-RING FRONT WHEEL/REAR (6, 07X1, 78) OEM PIAGGIO MOTO-GUZZI 1400 ELDORADO, 940 BELLAGIO, 1200 GRISO, STELVIO-GU90706061 More informationQuantity required : 36 |
||||||
|
8 |
886312 - COP 150/70 R17 SCORPYON TRAIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/3/1/3/img/98313.jpg)
9 |
BRAKE DISC REAR OEM PIAGGIO MOTO-GUZZI 1100-1200 BREVA 2005 >, GRISO 2005 >, 1200 NORGE 2006 >, SPORT 2006 >, STELVIO 2008 >, 940 BELLAGIO 2007 > 2013-85227R More informationQuantity required : 1 |
||||||
|
10 |
GU14616150-CONTREPOIDS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
11 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/8/5/9/img/128859.jpg)
12 |
BUSH CONIQUE OEM MOTO GUZZI 1200 GRISO, NORGE, STELVIO-GU05632730 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/8/8/1/img/128881.jpg)
13 |
WHEEL PHONIQUE REAR ABS OEM PIAGGIO MOTO-GUZZI 1200 BREVA, STELVIO, NORGE-GU05681530 More informationQuantity required : 1 |
||||||
|
14 |
978301-CAP MOZZO POST More informationQuantity required : 1 |
||||||
|
15 |
977056-PARAPOLVERE WHEEL POST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/8/4/2/img/132842.jpg)
16 |
SCREW MOUNTING DE WHEEL (12X65) OEM PIAGGIO MOTO-GUZZI BELLAGIO, BREVA, STELVIO, GRISO, NORGE-GU97202665 More informationQuantity required : 4 |
||||||
|
17 |
SENSOR ABS REAR OEM MOTO GUZZI 1200 SPORT 2006 > 2013/1200 BREVA 2005 > 2007/1200 NORGE 2088 > 2016/1200 STELVIO 2009 > 2017-GU05683730 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/5/img/67365.jpg)
18 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-598839 More informationQuantity required : 1 |
||||||
|
19 |
894704-GUIDE-CABLE More informationQuantity required : 4 |
||||||
|
20 |
GU49609601-CLAMP 2, 4X92 More informationQuantity required : 1 |
