Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 8V STD NTX 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

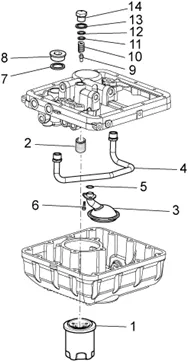

Moteur : 34.56 FILTRES À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/519/Stelvio_1200_8V_STD_NTX_2011-2015_34.56.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/3/1/4/0/img/103140.jpg)
1 |
OIL FILTER MOTO OEM PIAGGIO MOTO-GUZZI 850-1100-1200 BREVA, 940 BELLAGIO 2007 >, CALIFORNIA 1100 1999 >, V11, 1200 SPORT 2006 >, NORGE 2006 >, STELVIO 2009 >-GU30153000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/1/7/img/68817.jpg)
2 |
FITTING/INSERT DE OIL FILTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC ET MOTO-GUZZI-829122 More informationQuantity required : 1 |
||||||
3 |
GU05152230-OIL FILTER More informationQuantity required : 1 |
||||||
|
4 |
GU05005730-HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/5/9/img/126159.jpg)
5 |
O-RING (15, 08X2, 62) OEM PIAGGIO COMMON A LA RANGE-GU90706151 More informationQuantity required : 1 |
||||||
|
6 |
B013207-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/9/0/4/img/99904.jpg)
7 |
976636-BUSH EN CUIVRE 32. 5X38X1. 5 More informationQuantity required : 1 |
||||||
|
8 |
976635-CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/1/img/126161.jpg)
9 |
PISTON DE BY-PASS OIL OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU30150900 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/2/img/126162.jpg)
10 |
SPRING PISTON OIL FILTER OEM MOTO GUZZI 1200 NORGE, STELVIO-GU94321077 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
11 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/3/img/126163.jpg)
12 |
SPACER (6. 5X11. 5X3) OEM PIAGGIO COMMON A LA RANGE-GU30158900 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/4/img/126164.jpg)
13 |
WASHER CUIVRE (18. 25X24X1) OEM MOTO GUZZI COMMON A LA RANGE-GU18144350 More informationQuantity required : 1 |
||||||
|
14 |
GU31159050-CAP More informationQuantity required : 1 |
