Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 8V STD NTX 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

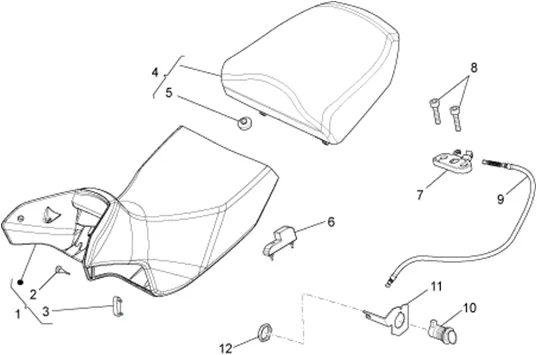

Chassis : 33.19 SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/519/Stelvio_1200_8V_STD_NTX_2011-2015_33.19.PNG)
1 |
88617600A2 - SELLA PILOTA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
2 |
CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001 More informationQuantity required : 2 |
||||||
|
3 |
AP8126701-RUBBER APPUI SEAT More informationQuantity required : 2 |
||||||
|
4 |
88621100A2 - SELLA PASSEGGERO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/9/0/img/71590.jpg)
5 |
BUTEE RUBBER DE SEAT OEM PIAGGIO COMMON A LA RANGE-AP8126702 More informationQuantity required : 5 |
||||||
|
6 |
886175-GOMMINO APPOGGIO SELLA More informationQuantity required : 4 |
||||||
|
7 |
AP8102913-PL. FIX. SEAT PASS. More informationQuantity required : 1 |
||||||
|
8 |
GU98370625-SCREW M6X25 More informationQuantity required : 2 |
||||||
|
9 |
883048-TRASMISSIONE SELLA More informationQuantity required : 1 |
||||||
|
10 |
GU05466830-LOCK SEAT More informationQuantity required : 1 |
||||||
|
11 |
AP8134948-PIASTRINA FERMACAVO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/4/img/71184.jpg)
12 |
NUT LOCK (M22 X 1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8102523 More informationQuantity required : 1 |
