Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 8V STD NTX 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

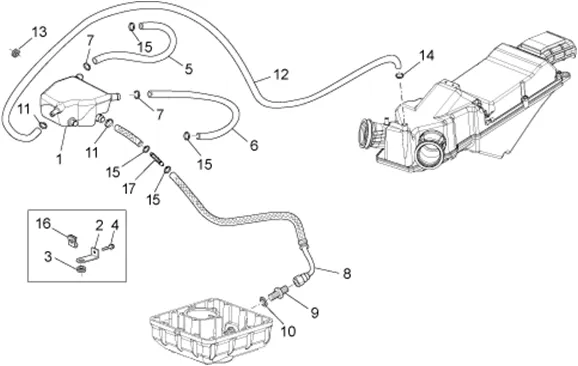

Chassis : 33.28 INSTALLATION BLOW-BY
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/519/Stelvio_1200_8V_STD_NTX_2011-2015_33.28.PNG)
1 |
886098-TANK BLOW-BY More informationQuantity required : 1 |
||||||
|
2 |
GU06412300-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
3 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/5/img/67365.jpg)
4 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-598839 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/4/3/7/img/98437.jpg)
5 |
HOSE DE DEGAZAGE RIGHT OEM PIAGGIO MOTO-GUZZI 1200 STELVIO 2008 > 2017-883034 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/4/3/8/img/98438.jpg)
6 |
HOSE DE DEGAZAGE LEFT OEM PIAGGIO MOTO-GUZZI 1200 STELVIO 2008 > 2017-883035 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/2/img/71172.jpg)
7 |
CLAMP CLIC (17, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8102349 More informationQuantity required : 2 |
||||||
|
8 |
2B001408-HOSE More informationQuantity required : 1 |
||||||
|
9 |
GU01161331-REDUCTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/0/img/73410.jpg)
10 |
GASKET OIL OEM PIAGGIO MOTO-GUZZI 1200 NORGE, SPORT, BREVA, GRISO, STELVI, 1400 CALIFORNIA, AUDACE/APRILIA 750 DORSODURO, SHIVER, 1200 CAPONORD-GU01154230 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/8/img/71198.jpg)
11 |
CLAMP CLIC (13. 5X6) OEM PIAGGIO COMMON A LA RANGE-AP8102765 More informationQuantity required : 2 |
||||||
|
12 |
GU00823955080-TUBO TOA 175/70 8X13 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/2/img/72272.jpg)
13 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220162 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/7/img/71197.jpg)
14 |
CLAMP CLIC (13X6) OEM PIAGGIO COMMON A LA RANGE-AP8102764 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/3/img/71153.jpg)
15 |
CLAMP CLIC (15. 5X6. 6) OEM PIAGGIO COMMON A LA RANGE-AP8101586 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
16 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/1/4/2/img/99142.jpg)
17 |
FITTING A DEUX VOIES OEM MOTO GUZZI 1200 STELVI 2011 > 2017-886339 More informationQuantity required : 1 |
