Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 8V STD NTX 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

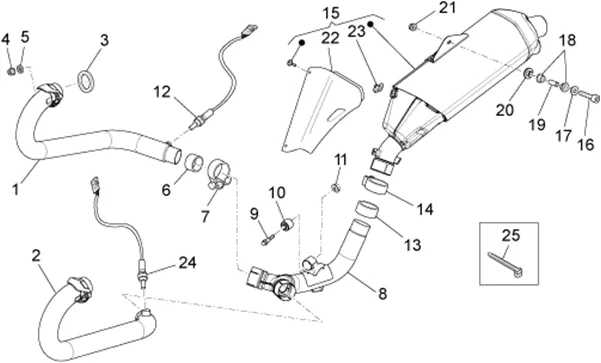

Chassis : 33.31 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/519/Stelvio_1200_8V_STD_NTX_2011-2015_33.31.PNG)
1 |
887217-TUBO DI SCARICO DX MICROPALINATO More informationQuantity required : 1 |
||||||
|
2 |
887218-TUBO DI SCARICO SX MICROPALINATO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/4/5/img/99845.jpg)
3 |
GASKET EXHAUST OEM PIAGGIO MOTO-GUZZI 1200 SPORT, STELVIO, GRISO, NORGE, 1400 CALIFORNIA, ELDORADO-976376 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/0/img/73550.jpg)
4 |
NUT FLANGE (M8) OEM PIAGGIO COMMON A LA RANGE-GU92660021 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
5 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/0/7/0/img/126070.jpg)
6 |
GASKET EXHAUST OEM PIAGGIO MOTO-GUZZI 1200 GRISO, STELVIO-GU06123500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/4/8/3/img/98483.jpg)
7 |
CLAMP DE MANIFOLD EXHAUST ORIGNE MOTO GUZZI 1200 STELVIO 2009 >-883094 More informationQuantity required : 2 |
||||||
|
8 |
887219-RACCORDO 2 IN 1 More informationQuantity required : 1 |
||||||
|
9 |
SCREW FLANGE TH (10X55) OEM PIAGGIO COMMON A LA RANGE-AP8152410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/0/img/72280.jpg)
10 |
SILENTBLOC FOR EXHAUST/OR SUSPENSION ARM "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 GRISO, STELVIO/APRILIA 125 LEONARDO, 50 SCARABEO 2 STROKE -AP8220346- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
11 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/6/img/70836.jpg)
12 |
SONDE LAMDA OEM PIAGGIO APRILIA 750 SHIVER 2007 >, DORSODURO 2008 >, 1200 CAPONORD 2014 >, DORSODURO 2010 >/MOTO-GUZZI 750 V7 2012 >, NEVADA 2012 >, 850 V9 2016 >, 1200 STELVIO 2011 >-896110 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/3/6/img/73436.jpg)
13 |
GASKET EXHAUST OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV-4, TUONO/MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO-GU05128230 More informationQuantity required : 1 |
||||||
|
14 |
976521-FASCETTA STRIGITUBO PER SILENZIATORE More informationQuantity required : 1 |
||||||
|
15 |
97721R-SILENZIATORE DI SCARICO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/7/2/img/73572.jpg)
16 |
SCREW BTR (8X60) OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU98680460 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/8/img/71698.jpg)
17 |
BUSH/WASHER CREUSE MOUNTING SILENCER OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8134378 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/5/img/71745.jpg)
18 |
RUBBER DE SILENCER EXHAUST OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8144071 More informationQuantity required : 2 |
||||||
|
19 |
AP8121072 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
20 |
977582-BUSSOLA A T 8, 2X12X4, 5 COL 28X3 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/3/3/img/132533.jpg)
21 |
NUT FLANGE (8X1. 25) OEM PIAGGIO COMMON A LA RANGE-GU92650138 More informationQuantity required : 1 |
||||||
|
22 |
978444-PROTEZIONE PARACALORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
23 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/9/img/67299.jpg)
24 |
SONDE LAMBDA L 325 MM OEM PIAGGIO COMMON A LA RANGE-584344 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/0/4/img/132604.jpg)
25 |
HOSE CLAMP NYLON TYPE RILSAN 3. 6X375MM OEM PIAGGIO COMMON A LA RANGE-GU93304390 More informationQuantity required : 1 |
