Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 8V STD NTX 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

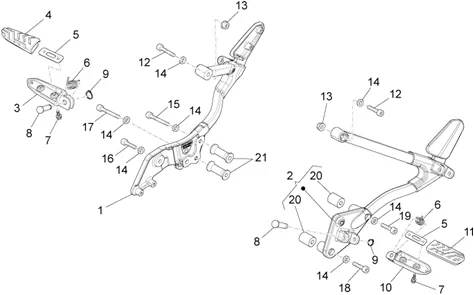

Chassis : 33.04 R-PIED PILOTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/519/Stelvio_1200_8V_STD_NTX_2011-2015_33.04.PNG)
1 |
886987 - SUPPORTO PEDANA DX CPL More informationQuantity required : 1 |
||||||
|
2 |
883103-BRACKET PEDANA SX COMPLETO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/0/9/7/img/99097.jpg)
3 |
FOOTREST PILOTE RIGHT OEM MOTO GUZZI V85 2019 >-886184 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/7/img/71417.jpg)
4 |
RUBBER FOOTREST OEM PIAGGIO STELVIO, V85 MOTO GUZZI-AP8120831 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/6/img/71696.jpg)
5 |
PLATE OF REST FOOT FRONT OEM MOTO GUZZI V85 2019 >-AP8134276 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/0/img/72310.jpg)
6 |
SPRING FOOTREST PILOTE OEM PIAGGIO MOTO-GUZZI BREVA, NORGE, STELVIO, V7, V9, V85/APRILIA 750-900 SHIVER-AP8221277 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
7 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/3/img/71473.jpg)
8 |
PIVOT REST-FEET OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI/APRILIA-AP8121567 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/1/img/71981.jpg)
9 |
CLIPS/CIRCLIPS (D-8) OEM PIAGGIO COMMON A LA RANGE-AP8152409 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/0/9/8/img/99098.jpg)
10 |
FOOTREST PILOTE LEFT OEM MOTO GUZZI V85 2019 >-886185 More informationQuantity required : 1 |
||||||
|
11 |
RUBBER FOOTREST OEM PIAGGIO STELVIO, V85 MOTO GUZZI-AP8120831 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/9/img/133159.jpg)
12 |
SCREW BTR (8X35) OEM PIAGGIO COMMON A LA RANGE-GU98680435 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
13 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
14 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 7 |
||||||
|
15 |
GU98680480-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/2/img/67332.jpg)
16 |
SCREW BTR (8X25) CALIPER OU SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-597150 More informationQuantity required : 1 |
||||||
|
17 |
GU98680465-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/7/2/img/73572.jpg)
18 |
SCREW BTR (8X60) OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU98680460 More informationQuantity required : 1 |
||||||
|
19 |
VIS |
||||||
|
20 |
883107-SPACER More informationQuantity required : 2 |
||||||
|
21 |
886933-SPACER More informationQuantity required : 2 |
