Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 8V STD NTX 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

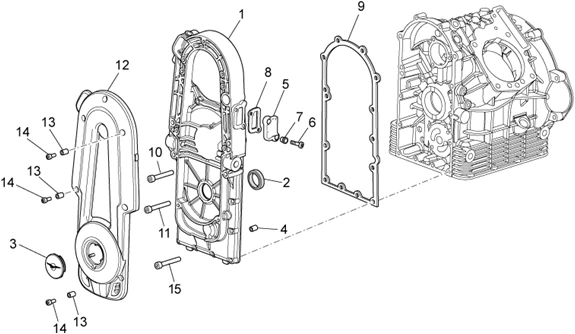

Moteur : 34.47 CARTER II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/519/Stelvio_1200_8V_STD_NTX_2011-2015_34.47.PNG)
1 |
82999R-COVER DISTRIBUZIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/0/0/img/132200.jpg)
2 |
OIL SEAL (22X35X7) DE CASING TIMING MOTO-GUZZI 1400 CALIFORNIA, 850-1200 BREVA, STELVIO, NORGE-GU90412237 More informationQuantity required : 1 |
||||||
|
3 |
GU05002130-CAP * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/2/img/68552.jpg)
4 |
STUD CALIBRE 11. 8X10 OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI ET LES MAXI SCOOTER 400-500 CC-825597 More informationQuantity required : 2 |
||||||
|
5 |
976554-CAP BLOW-BY FLANGIA DISTRIBUZIONE More informationQuantity required : 1 |
||||||
|
6 |
GU98682320-SCREW M6X20 More informationQuantity required : 2 |
||||||
|
7 |
GU91120607-BUSH 6, 4X8, 4X10, 5 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/6/img/65776.jpg)
8 |
O-RING (34. 65X1. 78) OEM PIAGGIO COMMON A LA RANGE-177408 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/5/4/img/99854.jpg)
9 |
GASKET COVER DE TIMING ORINE MOTO GUZZI 1200-1400 AUDACE, CALIFORNIA, GRISO, NORGE, STELVIO-976478 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/7/img/71817.jpg)
10 |
SCREW BTR (8X55) OEM PIAGGIO COMMON A LA RANGE-AP8150046 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/4/img/133184.JPG)
11 |
SCREW THC M6X30 OEM MOTO GUZZI COMMON A LA RANGE-GU98682330 More informationQuantity required : 9 |
||||||
|
12 |
GU05001630-COVER ALTERNATEUR GREY More informationQuantity required : 1 |
||||||
|
13 |
GU91120606-BUSH 6, 8X8, 8X5, 8 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
14 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-GU98682316 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/1/2/3/5/img/141235.jpg)
15 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-GU98620335 More informationQuantity required : 1 |
