Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 8V STD NTX 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

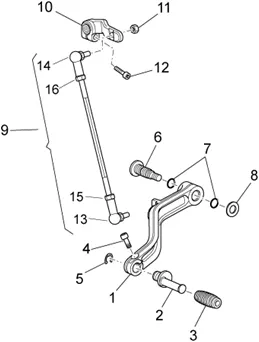

Chassis : 33.06 LEVIER BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/519/Stelvio_1200_8V_STD_NTX_2011-2015_33.06.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/2/9/img/108529.jpg)
1 |
GEAR LEVER OEM MOTO GUZZI 850-1100-1200 GRISO, 1200 STELVIO, 940 BELLAGIO-GU06250900 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/2/img/71452.jpg)
2 |
ROD BRAKE LEVER REAR OEM PIAGGIO FOR MOTORCYCLE-GUZZI STELVIO 2024, 850-1200 NORGE, BREVA, 1200 SPORT/ROD SELECTEUR DE VITESSES RANGE MOTO APRILIA-AP8121221 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
3 |
RUBBER BRAKE LEVER REAR OU SELECTEUR OEM PIAGGIO FOR MOTORCYCLE-GUZZI/APRILIA-AP8120912 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
4 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-GU98682316 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/1/img/71891.jpg)
5 |
CLIPS/CIRCLIPS DIAMETRE 9MM OEM PIAGGIO COMMON A LA RANGE-AP8150462 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/5/7/7/5/img/215775.jpg)
6 |
PIVOT/SCREW OF PEDAL OF BRAKE REAR OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-2B012762 More informationQuantity required : 1 |
|||||||||
6 |
REAR BRAKE PEDAL PIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -884033 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/8/img/71738.jpg)
7 |
O-RING (11, 11X1, 78) OEM PIAGGIO COMMON A LA RANGE-AP8144007 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/2/img/132682.jpg)
8 |
WASHER PLATE (10, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-GU95008210 More informationQuantity required : 1 |
|||||||||
|
9 |
883044-TIRANTE COMPL CAMBIO More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/6/7/5/img/128675.jpg)
10 |
LEVER (ASSOCIE AU SELECTEUR) BOX OF VITESSES OEM PIAGGIO 850-1100-1200 BREVA, 850-1200 NORGE, 1200 SPORT-GU05256930 More informationQuantity required : 1 |
|||||||||
|
11 |
GU92630707-NUT M6X1 More informationQuantity required : 2 |
|||||||||
|
12 |
GU98682320-SCREW M6X20 More informationQuantity required : 1 |
|||||||||
|
13 |
ROTULE SELECTEUR DE BOX OEM MOTO GUZZI COMMON A LA RANGE-GU32258110 More informationQuantity required : 1 |
|||||||||
|
14 |
ROTULE SELECTEUR DE BOX (G) OEM MOTO GUZZI COMMON A LA RANGE-GU32258010 More informationQuantity required : 1 |
|||||||||
|
15 |
GU92609206-NUT M6 More informationQuantity required : 1 |
|||||||||
|
16 |
GU03256800-DADO M6 More informationQuantity required : 1 |
|||||||||
