Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 8V STD NTX 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

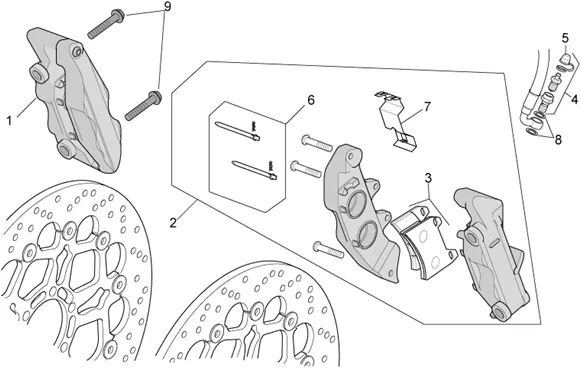

Chassis : 33.34 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/519/Stelvio_1200_8V_STD_NTX_2011-2015_33.34.PNG)
1 |
887067-(*) PINZA BRAKE ATACCO RADIALE DX More informationQuantity required : 1 |
||||||
|
2 |
887068 - (*)PINZA FRENO ATTACCO RADIALE SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/5/6/img/71656_20260511112716.jpg)
3 |
BRAKE PADS FRONT BREMBO OEM PIAGGIO FOR MOTORCYCLE-GUZZI 1200 NORGE, STELVIO, V9/APRILIA 750-1200 DORSODURO, 650 PEGASO, 1000 TUONO V2, 1000 TUONO V4 (PAIRE)-AP813614 More informationQuantity required : 2 |
||||||
|
4 |
AP8133945-KIT SPURGO ANT More informationQuantity required : 2 |
||||||
|
5 |
AP8113070-CAPUCHON RENIFLARD More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/2/6/img/101926.jpg)
6 |
PIVOT + SPRING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU01659130 More informationQuantity required : 2 |
||||||
|
7 |
GU01659131-MOLLA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
8 |
WASHER HOSE BRAKE (10X1. 5X1) OEM MOTO GUZZI COMMON A LA RANGE-GU25656100 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/3/img/71983.jpg)
9 |
SCREW FLANGE TH (10X55) OEM PIAGGIO COMMON A LA RANGE-AP8152414 More informationQuantity required : 4 |
