Vehicle Exploded View - APRILIA SR 125 STORM TT BSIV NOABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

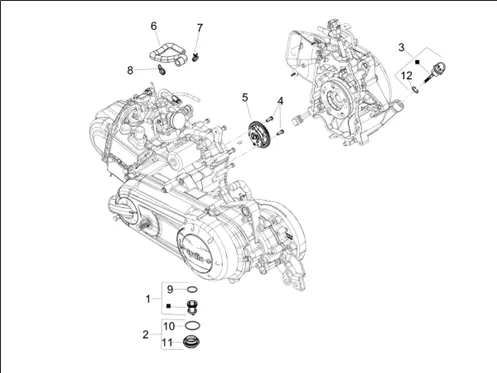

Moteur : 01.13 POMPE HUILE-FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1246/SR_125_STORM_TT_BSIV_NOABS_2020_(EMEA)_01.13.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/7/4/img/72774.jpg)
1 |
OIL FILTER/CREPINE OEM PIAGGIO 50 SXR APRILIA 2021 >/V7, V9 E4-E5 MOTO GUZZI-B018020 More informationQuantity required : 1 |
||||||
2 |
B0154004 - BOUCHON FILTRE HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/1/3/0/img/164130.jpg)
3 |
JAUGE A OIL OEM APRILIA 50 SXR 2021 >-1A013415 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/9/2/2/7/img/159227.jpg)
4 |
SCREW TORX (5X16) OEM PIAGGIO COMMON A LA RANGE-1A001073 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/9/5/3/img/100953.jpg)
5 |
OIL PUMP OEM PIAGGIO 50 SXR APRILIA 2021 >/V7, V9 E4-E5 2017 > MOTO GUZZI-B018448 More informationQuantity required : 1 |
||||||
|
6 |
1A006176-HOSE RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/8/img/72898.jpg)
7 |
CLAMP HOSE (10MM) OEM PIAGGIO COMMON A LA RANGE-CM002917 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/7/img/72897.jpg)
8 |
CLAMP (15MM) SERRAGE HOSE OEM PIAGGIO COMMON A LA RANGE-CM002916 More informationQuantity required : 1 |
||||||
|
9 |
B017406 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/9/img/66149.jpg)
10 |
GASKET CAP DE VIDANGE (Ø31, 47X1, 78MM) OEM PIAGGIO 125-250-400-500 MP3, BEVERLY, X-EVO, X8, X9, 125 FLY, 125-500 X10/GILERA 125-500 NEXUS/APRILIA 125-400-500 ATLANTIC, SCARABEO-285536 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/8/6/img/111986.jpg)
11 |
CAP OIL FILTER OEM PIAGGIO COMMON A LA RANGE-B015598 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/8/0/img/158280.jpg)
12 |
O-RING OEM PIAGGIO COMMON A LA RANGE-1A009397 More informationQuantity required : 1 |
