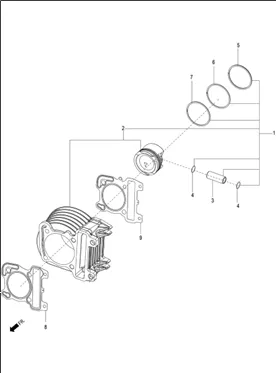

Moteur : 01.05 GROUPE CYLINDRE-PISTON-AXE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1246/SR_125_STORM_TT_BSIV_NOABS_2020_EMEA_01.05.png)
1 |
SP1L001208C-GROUP CYLINDER-PISTON-SPINDLE More informationQuantity required : 1 |
||||||
|
2 |
SP1L000736C-ESEMBLE PISTON More informationQuantity required : 1 |
||||||
|
3 |
880841-SPINDLE More informationQuantity required : 1 |
||||||
|
4 |
879474-CIRCLIPS More informationQuantity required : 2 |
||||||
|
5 |
1A001728-1- PISTON RING More informationQuantity required : 1 |
||||||
|
6 |
B018216-2- PISTON RING More informationQuantity required : 1 |
||||||
|
7 |
B018217-PISTON RING RACLEUR D'HUILE More informationQuantity required : 1 |
||||||
|
8 |
B014739-CYLINDER HEAD GASKET/CYLINDER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/2/6/4/img/164264.jpg)
9 |
CYLINDER BASE GASKET DE CYLINDER 0, 4MM OEM PIAGGIO 50 SXR APRILIA 2021 >-CM291501 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/2/6/6/img/164266.jpg)
9 |
CYLINDER BASE GASKET DE CYLINDER 0, 6MM OEM PIAGGIO 50 SXR APRILIA 2021 >-CM291502 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/2/6/5/img/164265.jpg)
9 |
CYLINDER BASE GASKET DE CYLINDER 0, 8MM OEM PIAGGIO 50 SXR APRILIA 2021 >-CM291503 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
-
