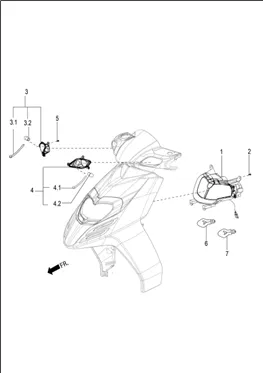

Cadre : 02.25 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1246/SR_125_STORM_TT_BSIV_NOABS_2020_(EMEA)_02.25.png)
1 |
1D002965-HEADLAMP FRONT COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
2 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/9/1/9/img/152919.jpg)
3 |
FRONT RIGHT INDICATOR OEM PIAGGIO 50-125 TYPHOON 2018 >/APRILIA 50-125 SR MOTARD 2018 >-1D001570 More informationQuantity required : 1 |
||||||
|
3a |
1D001926-WIRING HARNESS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
3b |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/9/1/7/img/152917.jpg)
4 |
FRONT LEFT INDICATOR OEM PIAGGIO 50-125 TYPHOON 2018 >/APRILIA 50-125 SR MOTARD 2018 >-1D001571 More informationQuantity required : 1 |
||||||
|
4a |
1D001927-WIRING HARNESS More informationQuantity required : 1 |
||||||
|
4b |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
5 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/2/img/65962.jpg)
6 |
AMPOULE/LAMPE 12V 35/35W HS1 OEM PIAGGIO COMMON A LA RANGE-231215 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
7 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
