Vehicle Exploded View - APRILIA SR 125 STORM TT BSIV NOABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

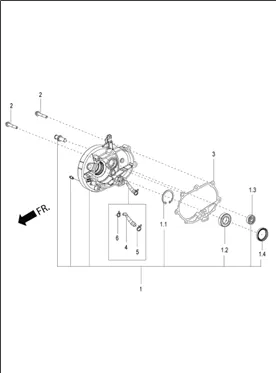

Moteur : 01.04 COUVERCLE RÉDUCTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1246/SR_125_STORM_TT_BSIV_NOABS_2020_(EMEA)_01.04.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/6/0/5/9/img/166059.jpg)
1 |
COVER DE REDUCTEUR OEM APRILIA 50 SXR 2021 >-SP1A007948 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
1a |
CLIPS/CIRCLIPS (47X50. 5X1. 75) OEM PIAGGIO COMMON A TOUTE LA RANGE-006647 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/9/1/img/164091.jpg)
1b |
BEARING (25X47X12) RADIAL COVER DE REDUCTEUR OEM APRILIA 50 SXR APRILIA 2021 >-83044R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/9/2/img/164092.jpg)
1c |
BEARING (12X32X10) DE REDUCTEUR OEM PIAGGIO 50 SXR APRILIA 2021 >-B016953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/9/3/img/164093.JPG)
1d |
BUSH D'ETANCHEITE COVER DE COVER REDUCTEUR (35X47X7) APRILIA SR/SXR VESPA LX/SXL/VXL-B019108 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/8/9/img/164089.jpg)
2 |
1A007618-SCREW More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/9/0/img/164090.jpg)
3 |
GASKET COVER DE REDUCTEUR OEM APRILIA 50 SXR 2021 >-1A006483 More informationQuantity required : 1 |
||||||
4 |
1A006780-HOSE RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/7/img/72897.jpg)
5 |
CLAMP (15MM) SERRAGE HOSE OEM PIAGGIO COMMON A LA RANGE-CM002916 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/8/img/72898.jpg)
6 |
CLAMP HOSE (10MM) OEM PIAGGIO COMMON A LA RANGE-CM002917 More informationQuantity required : 1 |
